HEMP/NEMP powerline filter

hemp nemp powerline filters icon 1

Series

The 8080 HEMP/NEMP powerline filters of Holland Shielding Systems are designed to withstand the PCI test known as E1 and E2 while largely exceeding the shielding effectiveness as stated in MIL-STD-188-125.

Our R&D specialist has designed the filters so they meet the highest shielding demands with an insertion loss of 100 dB @ 9 kHz and 120 dB @ 20 kHz.

All our filters are tested with our in-house E1/E2 testing facility to confirm that they meet our high quality demands.

As the only powerline filter supplier in the world that has an E1 and E2 pulse tester in-house, we have the possibility to test and supply the filters with a short delivery time.


Features
  • 230 V / 440 VAC with 16 A – 200 A current ratings (others on request)
  • Single or three phase applications
  • Up to 100 dB @ 9 kHz
  • Very low residual pulse current
  • Quick development and delivery possible with our in-house testing facility

8080 - Shielding performance

Please note : These values are measured under laboratory conditions. Results may vary in other situations; please read our Guarantee.


Test pulse (5 kA)
8080 HEMP NEMP powerline filters test pulse
Residual pulse (800 mA)
8080 HEMP NEMP powerline filters Residual pulse

2 Line Power Filter
8080 HEMP NEMP powerline filters 2 line
4 Line Power Filter
8080 HEMP NEMP powerline filters 4 line

Dimensions (mm)
  partnumber A B C D E F G H J K L M N Mass Approx.
8080-2-16 393 240 138.5 323 150 45 35 120.75 120.75 21 11 M8 M8 10 kg
8080-4-16 539 400 120 320 390 45 35 120 120 21 11 M8 M8 20 kg
8080-2-32 393 240 138.5 323 150 45 35 120.75 120.75 21 11 M8 M8 10 kg
8080-4-32 539 400 120 320 390 45 35 120 120 21 11 M8 M8 20 kg
8080-4-63 633 560 139 533 520 20 50 150 150 33 11 M8 M8 55 kg
8080-4-125 450 480 120 400 440 20 25 150 150 52 11 M12 M12 65 kg
8080-4-200 700 620 175 640 560 30 30 200 200 52 17 M12 M12 80 kg
8080-4-200 1000 770 250 860 630 70 70 300 300 64 17 M20 M20 100 kg

Insertion loss and E1 and E2 pulse testing facility

As the only filter producer that can perform individual pulse testing, we are able to guarantee that your filter will protect your facility and not just on paper. Our filters are tested with our in-house test facility with which we are capable to perform PCI as per E1 (20 / 500 ns 2.5 kA peak) and E2 (1.5 / 4000 µs 250 A peak) test pulses. With our testing facilities we make sure that our filters comply with the highest demands and that the residual currents are within limits of the applicable standards and norms.

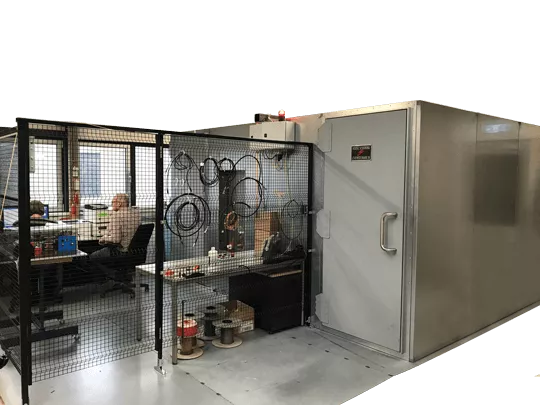

8080 HEMP NEMP powerline filters testing facility

The intense electromagnetic pulse (EMP) is generated by the phenomenon called “Compton effect” or “Compton scattering”. The nuclear explosion that generates this transient electromagnetic disturbance is also know as NEMP (Nuclear Electromagnetic Pulse) or HEMP (High altitude Electromagnetic Pulse). The HEMP is typically defined as a combination of three consecutive pulses called early time (E1) and intermediate-time (E2), as shown in the graph below.

8080 HEMP NEMP powerline filters
