Conductive textile & tapes

conductive textile icon 1

Series

Specify the desired width in mm. When you order Conductive textile tape (part number 4713) this generally is 25 mm.

Conductive textile is made of a polyester, metallized with Cu/Ni, extremely strong and flexible. It has conductivity in all directions, i.e. along the axes X, Y and Z. Conductive textile can be supplied as a cloth or as pressure-sensitive adhesive (PAS) tape wich is easy to apply to plastic housings in order to cover complex forms and shapes. Conductive textile has low contact resistance and the tape version has superior adhesive force. The product shields electromagnetic interference (EMI) effectively.

Laminates of metal foils with flame-retardant Nomex or Valox are also available; see our Mu-copper tape or Amucor foil and tape.

Our engineers can help you develop the right design to create overlaps, holes or connectors, cables and spuds.

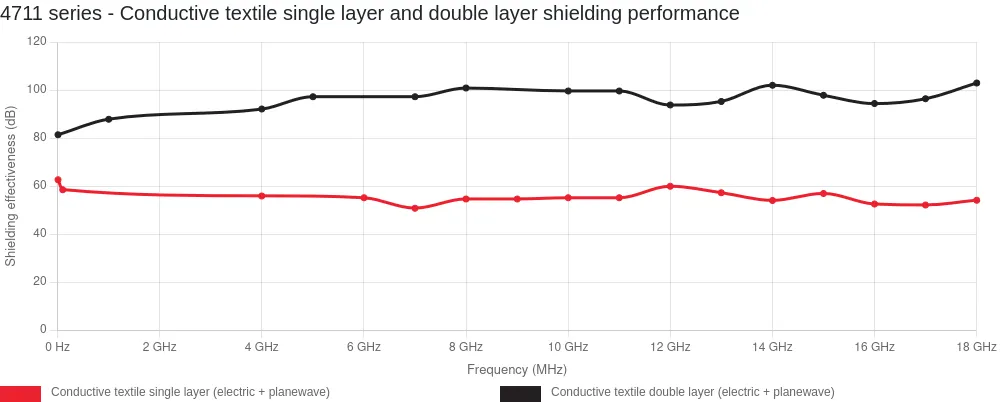

Conductive textile single and double shielding performance

4711 series - Conductive textile single layer

Please note : These values are measured under laboratory conditions. Results may vary in other situations; please read our Guarantee.

Advantages
  • Easily follows the contours of your housing
  • Flame retardant
  • Extremely strong
  • Corrosion free
  • Can be applied as die cut parts, as a sheet or in roll form

Applications
  • Shielding plastic enclosure parts
  • Shielding all non-conductive materials
  • Ground plane
  • Antistatic floor
  • Electrical connection between surfaces (sheets/foils)
  • Die-cuts
  • Shielding in housings
  • Shielding cables
  • Temporary shielding during tests

Options
  • Flame-retardant version
  • With (conductive) self-adhesive backing
  • With insulation layer
  • Die-cutting to any shape

Conductive textile washable fabric

We've also developed a fabric that can be washed. See also our Washable conductive fabric with stainless steel threads.

Conductive textile used in our shielded tents

Conductive textile is also used to make Shielded tents, Protective clothing, bags, etc.

Conductive textile tape can be cut to any width

Conductive textile tape can be cut to any width


Partnumbers

4711 - Conductive textile cloth

Conductive textile versions

Our conductive textile cloth can be delivered on rolls or as a sheet. The cloth can also be cut into any desired shape according to a customer's CAD drawing.

4712 - Conductive textile tape
with standard adhesive
Conductive textile versions

Our conductive textile tape with standard non-conductive adhesive on the back can be supplied on rolls. The tape is easy to use, e.g. for shielding cables. After application of the tape, the cables remain flexible.

4713 - Conductive textile tape
with conductive adhesive
Conductive textile versions

Our conductive textile tape with conductive adhesive on the back can be supplied on rolls. The tape is easy to use, e.g. for shielding cables. After application of the tape, the cables remain flexible.

4714 - Conductive textile
tape with insulation layer
Conductive textile versions

Our conductive textile tape with adhesive on the back can be supplied with a 0.15 mm thick white insulation layer and can be delivered on rolls.




4715 - Conductive textile
tape with insulation layer
Conductive textile versions

Our conductive textile tape with adhesive on the back can be supplied with a 0.22 mm thick black one, and can be delivered on rolls.

4721 - Conductive textile
with hot-melt adhesive (flame retardant level: UL94V0)
Conductive textile versions
Conductive textile with hot-melt adhesive (flame retardant level: UL94V0)

4721 - Conductive textile with hot-melt adhesive (flame retardant level: UL94V0)


Technical specifications
Item 4711 4712 4713 4714 4715 4721
Type Conductive textile cloth Conductive textile tape with standard adhesive Conductive textile tape with conductive adhesive 4714 Conductive textile tape with standard adhesive and 0.15 mm white insulation layer 4715 Conductive textile tape with standard adhesive and 0.22 mm black insulation layer Conductive textile with hot-melt adhesive (Flame retardant level: UL94V0)
Max. roll width 1400 mm 1000 mm 1000 mm 1000 mm 1000 mm 700 mm
Thickness mm 0.08 ±0.02 0.10 ±0.02 0.11 ±0.02 0.23 ±0.02 0.30 ±0.02 0.16 ± 0.02
Weight gr/m2 70 ±10 70 ±10 120 ±10 135 ±10 135 ±10 240 ± 10
Fabric density 260 260 260 260 260 260
Textile Plain wave Plain wave Plain wave Plain wave Plain wave Ripstop
Processing temperature - - - - - 150°C
Flame-retardant level - - - -   UL94V0
Shielding effectivity dB > 60 dB in 10 MHz-3 GHz
Surface resistivity Ω/sq <0.05
Coating component Cu+Ni
Basic material Polyester
Storage conditions -20°C - +40°C, Relative humidity < 65%
Notice Some people develop a skin allergy after prolonged contact
Standard roll width (mm) 10, 25, 50, 100
*Any roll width available on request
Roll length Min. 16.5m (standard)
*other roll length on request
