Frame gasket

frame gasket main 02

Series

Specify the width of the gasket in mm
Specify the width of the gasket in mm
Specify the width of the frame in mm
Specify the frame thickness in mm
Select an option
Select an option

The 8100 series Frame gaskets are ready-made gaskets according to customer specifications. They have reinforced corner pieces to guarantee optimum shielding performance and easy mounting characteristics.

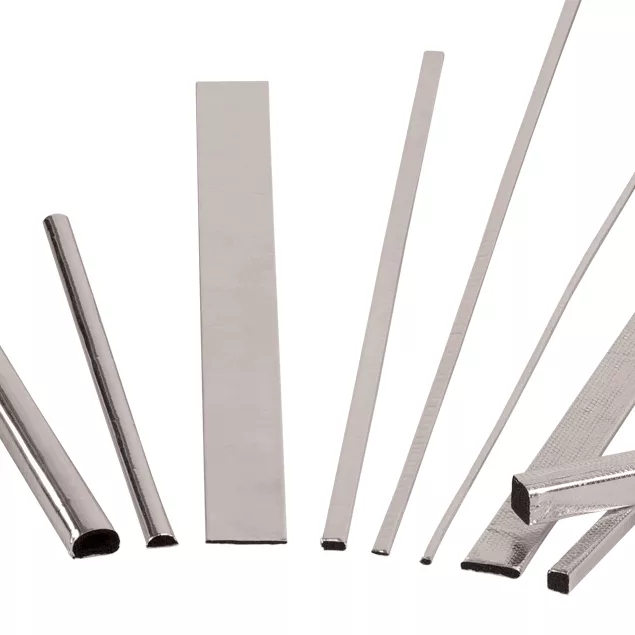

The base material is Amucor-shield 6800 series, Standard shield 7000 series or Ultra soft shield 7400 series.

The gasket can be produced with or without self-adhesive. When the gasket has little contact surface we recommend providing the gasket with an electrically conductive self-adhesive. The frame can be made with, without or with conductive adhesive and there is a amucor (8100) or conductive version (8101). If you send us a drawing, please include the dimensions shown above.


Neoprene core specifications
Volume weight 140 / 180 kg / m³ /
Hardness shore 00 38-55 Sh 00
Resistance when compressed 25% 350-630 g / cm²
Temperature °C -40° + 100°
Water absorption < 5%
Linear shrinkage (22hr 70°C) < 5%
Max. deformation when compressed 25%, 22 hrs at 70°C 12%
Recommend max. compression 25%

Shielding performance

The product's shielding performance depends on the chosen outer material (i.e. the conductive material). The 8100 series Frame gasket can be made with Amucor (Aluminium alloy) or conductive textile (very effective in combination with stainless steel, copper and chrome-plated constructions).

Please note : These values are measured under laboratory conditions. Results may vary in other situations; please read our Guarantee.

Frame gasket technical drawing standards

Benefits
  • Easy mounting
  • High shielding performance
  • No tools required
  • Dimensions up to 2 x 2 m
  • Low closure force
  • EXTREMELY STRONG
  • Can be supplied with self-adhesive

Core materials
  • N : Neoprene
  • P : Low closure force PVC foam
  • E : EPDM
  • F : Flame retardant UL94V-0 foam
  • S : Silicone foam
  • L : Polyurethane foam (ultra soft)

Compression stops (optional)

Disk or washer-type compression stops can be included to prevent over-compression.

Endless gasket compression stop washer type Endless gasket compression stop washer type
Washer type
Used at bolt holes
Disk type
Used next to bolt holes
Various uses

Examples of different uses for the Endless gasket (The solid Gray part is the water seal)

Frame gasket used in a flat lid on a curved housing construction frame gasket used in a curved lid on a curved housing construction Frame gasket used in a groove
1. Frame gasket used in a flat lid on a curved
housing construction
2. Frame gasket used in a curved lid on a curved housing construction 3. Frame gasket used in a groove
