Standard shield D-shape profile

For the standard shield series there are also special shapes available. The standard shield D-shaped profiles are made from durable EPDM rubber and covered with conductive textile. Thanks to their bulbous and/or concave designs, these profiles are easily compressible with minimal force. This unique combination of flexibility and conductivity makes these shapes ideal for demanding applications where both environmental sealing and electromagnetic shielding are required.

The EPDM core allows for repeated compression without loss of integrity, making them suitable for use in doors, hatches, cabinets, and panels where both shielding and sealing are critical. The conductive textile ensures a low-resistance path for EMI currents, further enhancing the overall shielding effectiveness of the profile.

Benefits

• Easy to fit, can be cut with scissors
• Self-adhesive EMC gasket
• Low closure force
• Roll length of 1 to 1000 meters (Depending on width and height of the EMI gasket)
• High EMI/RFI shielding performance
• EXTREMELY STRONG
• Deflection 50%

Options

• CNC cut into specific lengths
• Combination with water seal

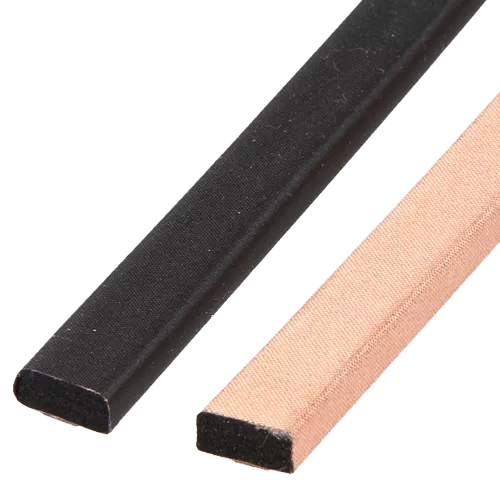

• Different conductive foils and fabrics

Tape Specification

• 01 Standard self-adhesive placed in the middle
• 02 Without self-adhesive
• 03 With conductive self-adhesive (only recommended on small sizes)
• 06 Standard self-adhesive, asymmetrical

Special profile shapes

EPDM rubber	70D-72	70D-68	70D-58	70D-62	70D-64	70D-76	70D-51
X x Y	4 x 2 mm	6 x 3 mm	8 x 4 mm	8 x 6 mm	12 x 8 mm	12 x 10 mm	21 x 17 mm
