Fiber optic ethernet converter set with casing

The Fiber-optic ethernet converter set with casing can be easilly mounted on the walls of a shielded room and faraday cage and offers a high-speed Ethernet/UTP communication links. The fiber-optic ethernet converter set is used to convert a 10/100/1000 Base-T signal to a 10/100/1000 optical signal, so you can use your internet connection or for example your videocamera connection inside or outside the Faraday cage while maintaining over 140 dB of room attenuation.

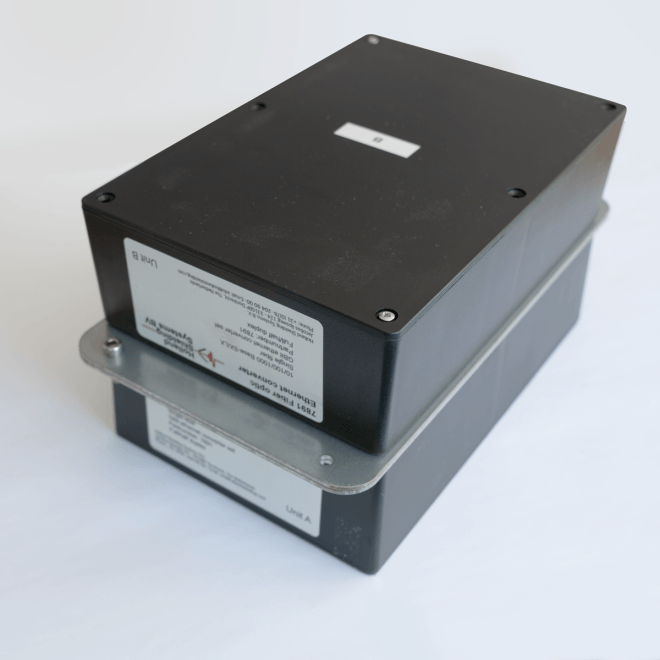

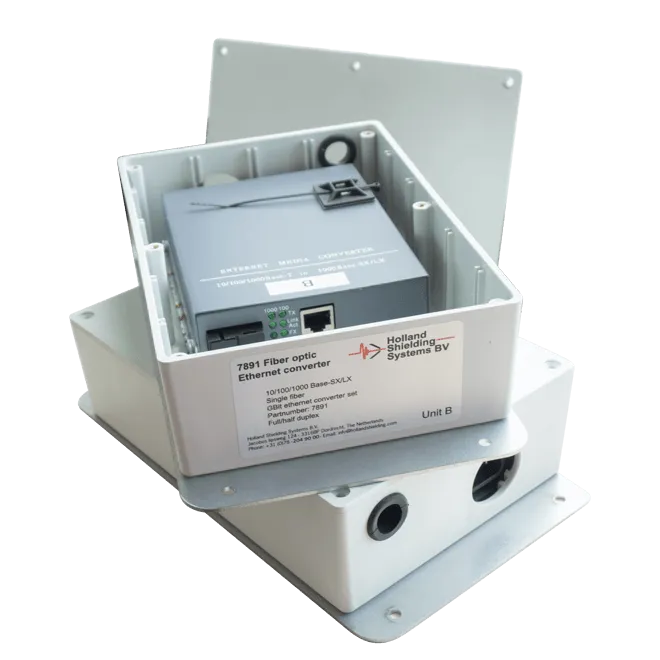

The set consists of two shielded fiber-optic converters with casing, a waveguide passage (copper waveguide), a power cable (type E/F-plug CEE 7/7) and a fiber-optic cable.

An optical fiber guiding light (high frequency) does not guide magnetic and electric waves. So signals from within the cage are not transported to the outside of the cage, or vice versa, because the optical fiber does not function as an antenna.

Features

• The transmission of optical signals can be done through a single fiber since this allows for twice as much data
  transmission compared with a twin fiber type
• Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
• UTP port supports MDI / MDI-X auto crossover.
• Supporting the max 1536 byte Ethernet packet
• Supporting flow control
• Adopting internal power supply

Specifications

Technical drawing
