Waveguides

Waveguides are specially designed metal tubes in order to block electromagnetic waves. They are available in almost any size depending on frequency. Attenuation curve is in relationship with diameter. Any non metallic material can be fed through the waveguide such as optical fiber, water, gas or air.

There are two versions available of the waveguide. A Mu-copper version and a Brass waveguides version with thread (7855).

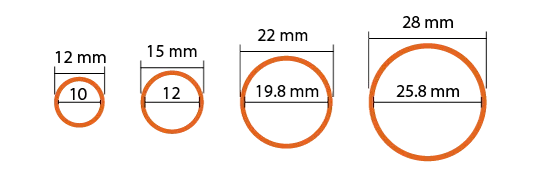

The Mu-copper version (7850) is available in 12 mm, 15 mm, 22 mm and 28 mm.

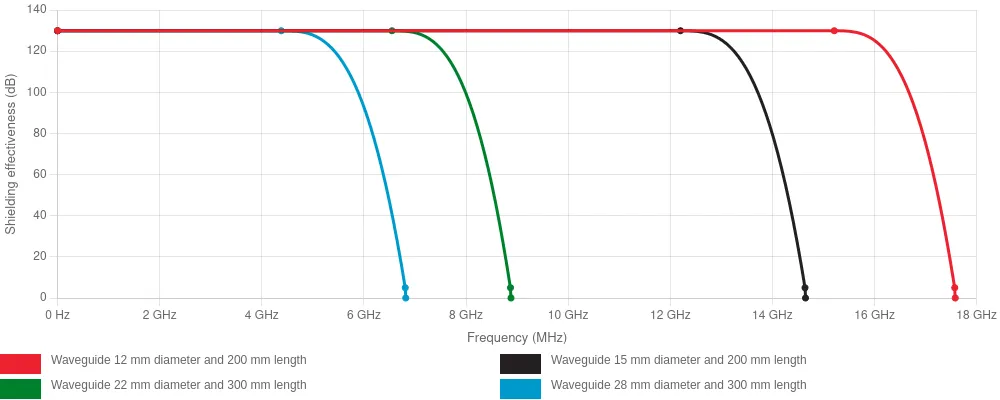

Attenuation waveguide

Copper waveguides 12 & 15 mm

Copper waveguides 22 & 28 mm
