Waveguides

Series

Standard length is 300 mm. Other diameters and lengths are on request.
Allowed maximum size is 20 MiB. You can upload multiple files

Waveguides are specially designed metal tubes in order to block electromagnetic waves. They are available in almost any size depending on frequency. Attenuation curve is in relationship with diameter. Any non metallic material can be fed through the waveguide such as optical fiber, water, gas or air.

There are two versions available of the waveguide. A brass version with thread and a Waveguides mu-copper version (7850).

The brass version (7855) with thread is available in 11.6 mm, 20.80 mm, 32.90 mm and 47.60 mm.

Attenuation waveguide

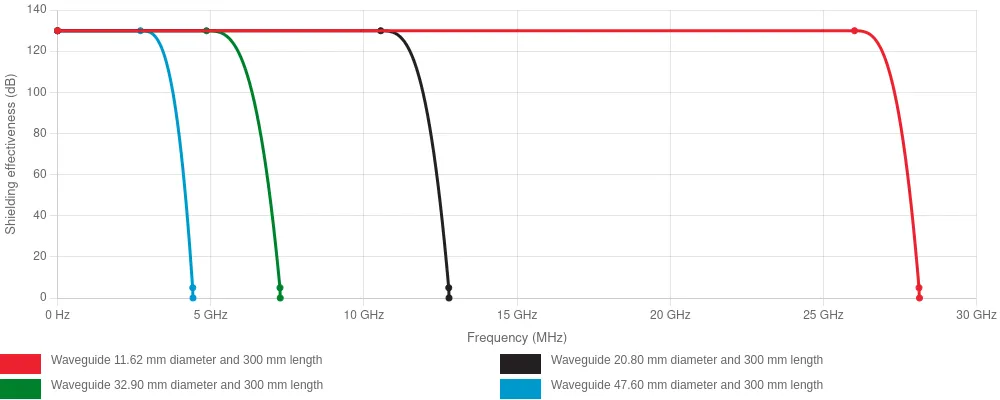

Waveguide copper attenuation circular

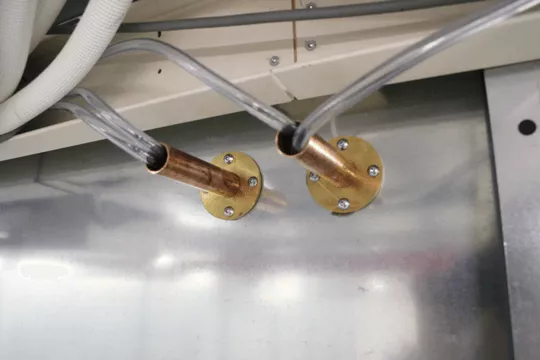

Waveguide with condensate hoses

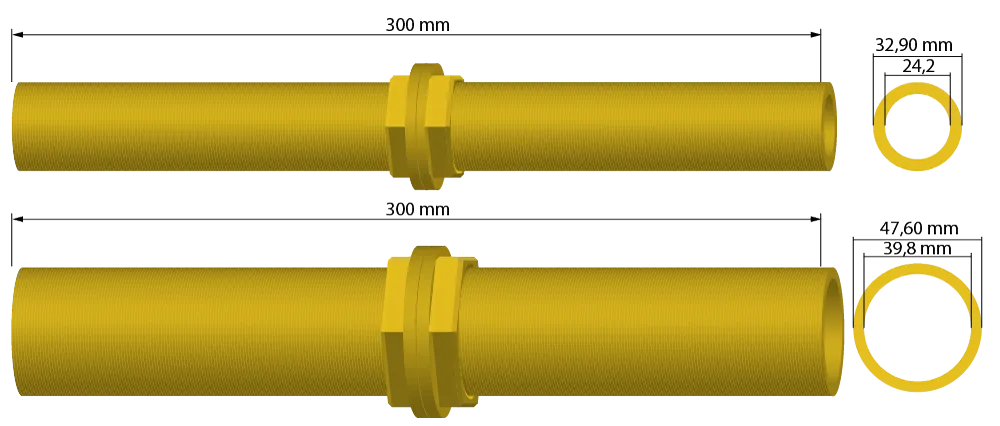

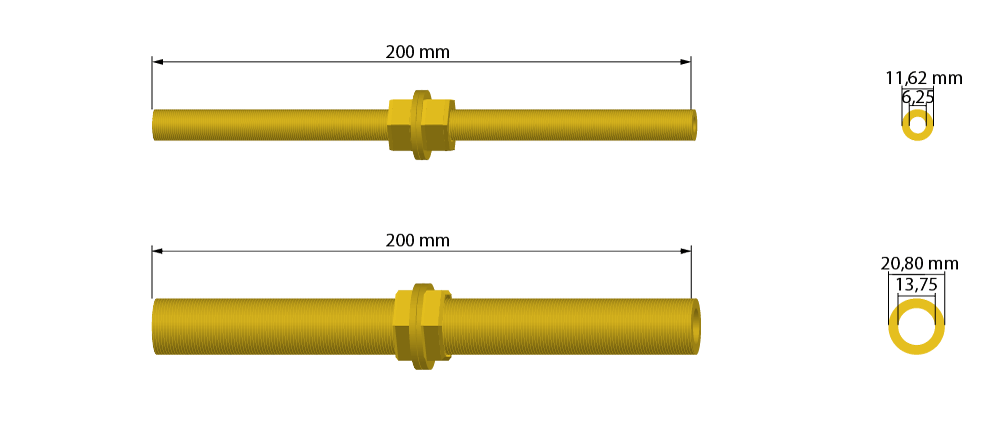

Waveguide brass with thread version 7855
Waveguide messing version
Part number Outer diameter Inner diameter
7855-11.62  11.62 mm  6.25 mm
7855-20.80  20.80 mm 13.75 mm
7855-32.90  32.90 mm 24.2 mm
7855-47.60  47.60 mm 39.8 mm

Other sizes on request, standard length 300 mm
