- Ultra high-performance filter for the highest shielding demands
The Ultra high-performance filter is a superior filter housed in a three-compartment casing with bolted covers and accessible terminals that achieves 100 dB insertion transmission loss at 14 kHz and above.
This series is offered as a two-line filter (single-phase and neutral) or as a four-line filter (three phases and neutral). The two-line filter can withstand up to 230 Volt, 1-150 amp, and 46 kW. If you are looking for a filter that can withstand more power we have the four-line filter, this filter delivers up to 400 Volt, 1-150 amp, and 138 kW. The neutral line is always attenuated and all conductors are decoupled from each other. This allows the conductors to operate independently without attenuation loss.

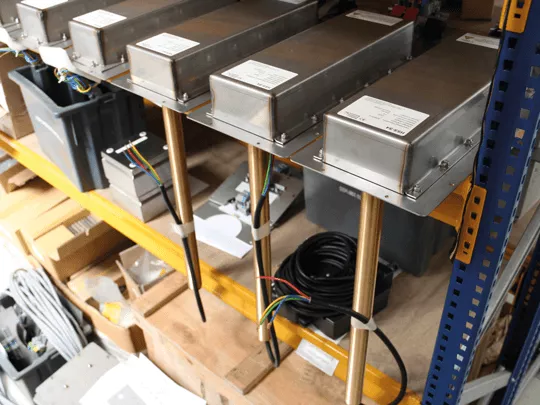

The filter is made to withstand the harshest environment and is very economical. Because of the custom design for your filter, the assembly is very simple and always with very low leakage. This filter is also a stock item and therefore always available quickly.
The circuit is designed as a symmetrical double- circuit with high-quality rod cores providing inductance. These cores do not saturate due to their large air gap and they are insensitive to asymmetrical load.
Foil capacitors ensure a long operating life by their self-healing features even after voltage transients. A seamless fixing of the filter casing to the shielded room is very important to ensure the correct operation. The filter is housed in a casing that has a base flange which provides stable mounting and excellent earthing when bolted to the shielded room via the mounting bolts.
Please note: EMP protection is available on request.
Technical data
Rated voltage VR for two-line filters | 277 VAC / 500 VDC | line-line or line-case |
---|---|---|
Rated voltage VR for four-line filters | up to 480 VAC up to 277 VAC |
line-line line-case |
Rated Frequency fR | DC - 60 Hz | |
Rated Current IR | See characteristics | Referred to +40 °C ambient temperature |
Number of lines | 2 or 4 | |
Insertion Loss, Per MIL-STD-220C | >100 dB | 14 kHz – 40 GHz |
DC Resistance | See characteristics | Each Line |
Power Dissipation | See characteristics | At Rated Current |
Test Voltage | 1200 VDC / 2 s | Line-line or line-case |
Voltage Drop /Phase ΔV | <1% | of VR at 50 Hz and IR |
Leakage Current ILeakage | See characteristics | at 250 VAC and 50 Hz |
Reactive Current IReactive | See characteristics | at 250 VAC and 50 Hz |
Discharge Time to Below 34V | 30 s | |
Climatic category | 25/070/21 |
Advantages
- For harsh environment
- Very economical use
- High performance
- Low leakage
- Easy mounting
- Stock item
- Custom design
- Insertion loss: 100 dB @ 14 kHz-40 GHz (MIL-STD-220C).
Applications
- EMC test laboratories
- Anechoic chambers
- Tempest rooms
- facilities
Rated current is available from 6 amp to 3000 amp in both single and three-phase versions. Filters are ideally suited for applications where the very highest performance is demanded.
Mounting
These protections are designed for mounting on the penetration panel or directly on the non-painted wall of the Faraday cage. Mounting terminals are dependent on the amount of power. Please see Connection in the Product range table.
Installation diagram
The technical drawing below shows how a power line filter is mounted on the wall of your Faraday cage.
General characteristics
For a clean main supply into a shielded room, high-performance filters are indispensable. Usually, these filters are directly mounted on the shielding wall. It is recommended to route filtered lines into the shielded room (Faraday cage) through the wall with an optional flexible metal conduit.
- Mains filter for single and three phase systems
- Insertion transmission loss 100 dB @ 14 kHz
- Double - ∏ circuit
- Rod cores allow asymmetrical load
- Self-healing effect of foil capacitors
Shielding performance
Circuits
2 line filter
4 line filter circuit
Single phase and neutral filter types: 230 Volt | 1-150 amp | 34 kVA

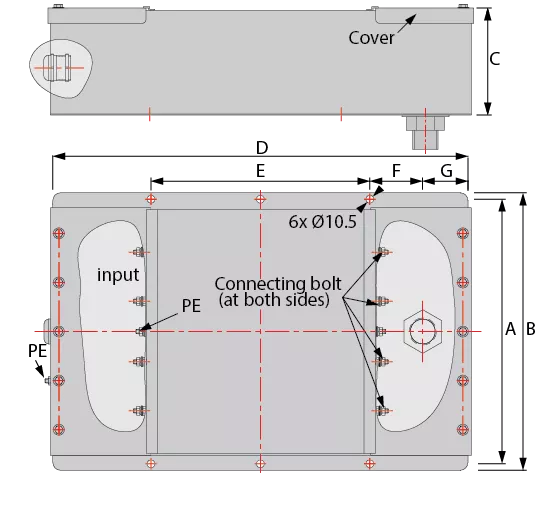

Outline drawing 1
Type | A | B | C | D | E | F | G | installation instructions | Outline drawing | IR (A) | I Leakage (A)* | I Reactive (A) | DC Resistance (Ω) | Power dissipation (w) | Connection | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
8010-2X16 | 188 | 205 | 120 | 750 | 450 | 110 | 80 | M24 conduit screw | 1 | 16 | 3.5 | 3.5 | 70 | 40 | M6 Screw | |
8010-2X32 | 188 | 205 | 120 | 750 | 450 | 110 | 80 | M24 conduit screw | 1 | 32 | 5 | 5 | 20 | 40 | M6 Screw | |
8010-2X63 | 188 | 205 | 140 | 920 | 620 | 110 | 80 | M33 conduit screw | 1 | 63 | 5 | 5 | 15 | 90 | M6 Screw | |
8010-2X100 | 288 | 305 | 180 | 1180 | 800 | 110 | 80 | M60 conduit screw | 1 | 100 | 9 | 9 | 5 | 120 | M12 Screw | |
8010-2X150 | 288 | 305 | 180 | 1180 | 800 | 110 | 80 | M60 conduit screw | 1 | 150 | 9 | 9 | 3 | 140 | M12 Screw |
Three phases and neutral filter types: 400 Volt | 1-150 amp | 103 kVA

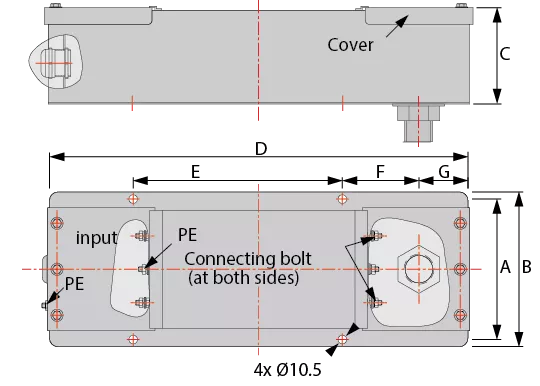

Outline drawing 2
Outline drawing 3
Type | A | B | C | D | E | F | G | installation instructions | Outline drawing | IR (A) | I Leakage (A)* | I Reactive (A) | DC Resistance (Ω) | Power dissipation (w) | Connection | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
8010-4X16 | 288 | 305 | 120 | 750 | 450 | 110 | 80 | M33 conduit screw | 2 | 16 | 0.7 | 3.5 | 70 | 70 | M6 Screw | |
8010-4X32 | 288 | 305 | 120 | 750 | 450 | 110 | 80 | M33 conduit screw | 2 | 32 | 0.9 | 5 | 20 | 80 | M6 Screw | |
8010-4X63 | 348 | 365 | 140 | 920 | 620 | 110 | 80 | M33 conduit screw | 2 | 63 | 0.9 | 5 | 15 | 170 | M6 Screw | |
8010-4X100 | 348 | 365 | 180 | 1480 | 1000 | 160 | 80 | M60 conduit screw | 3 | 100 | 1.7 | 9 | 5 | 220 | M12 Screw | |
8010-4X150 | 348 | 365 | 180 | 1480 | 1000 | 160 | 80 | M60 conduit screw | 3 | 150 | 1.7 | 9 | 3 | 270 | M12 Screw |
* If voltage between neutral and earth is 0V
