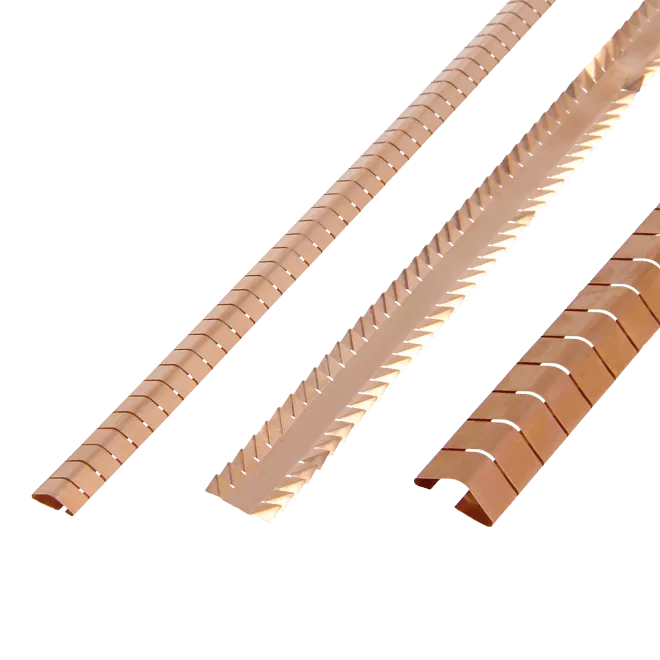

Stick-on mounting fingerstrip

Series

Stick-on mounting fingerstock gaskets with pressure-sensitive adhesive (PSA) are suitable for low-profile, bi-directional applications like rack mounting of line-cards in telecommunications equipment.

Stick-on mounting fingerstrip self-adhesive

A red line indicates the self-adhesive strip.

These gaskets offer high EMI-shielding performance in applications where space may be limited. Stick-on mounting fingerstrips are low-compression, adhesive-mounted beryllium-copper shielding strips. The self-adhesive tape makes mounting easy and secure.

Fingerstrips as STP files

To receive the STP files of the fingerstrips please contact us with the partnumber you need.

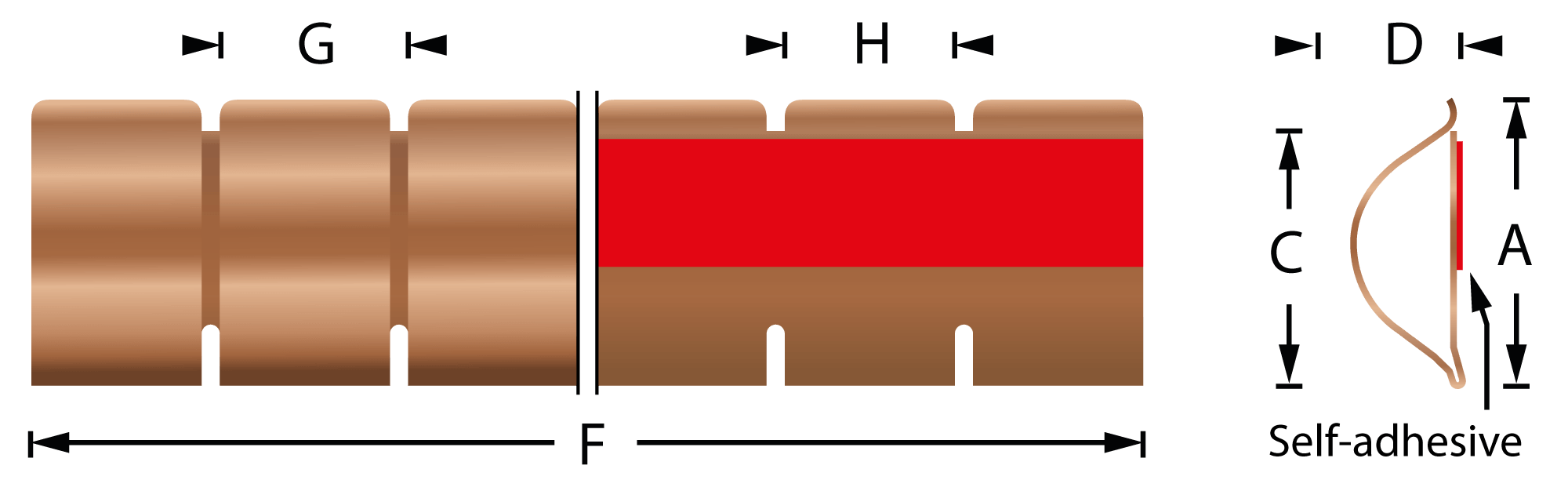

Stick-on 2301
Stick-on mounting fingerstrip gaskets
  Part number A C D F G H Material thickness
2301-01 7.1 4.6 2.8 610 4.8 4.3 0.05 mm
2301-07 15.2 7.1 5.6 610 9.5 8.7 0.09 mm
2301-08 19.8 11.2 8.1 457 8.8 8.7 0.10 mm
2301-10 5.3 3.3 2.0 406 4.8 4.3 0.05 mm
2301-11 15.2 7.2 5.7 455 9.5 8.7 0.10 mm
Material: Beryllium-copper

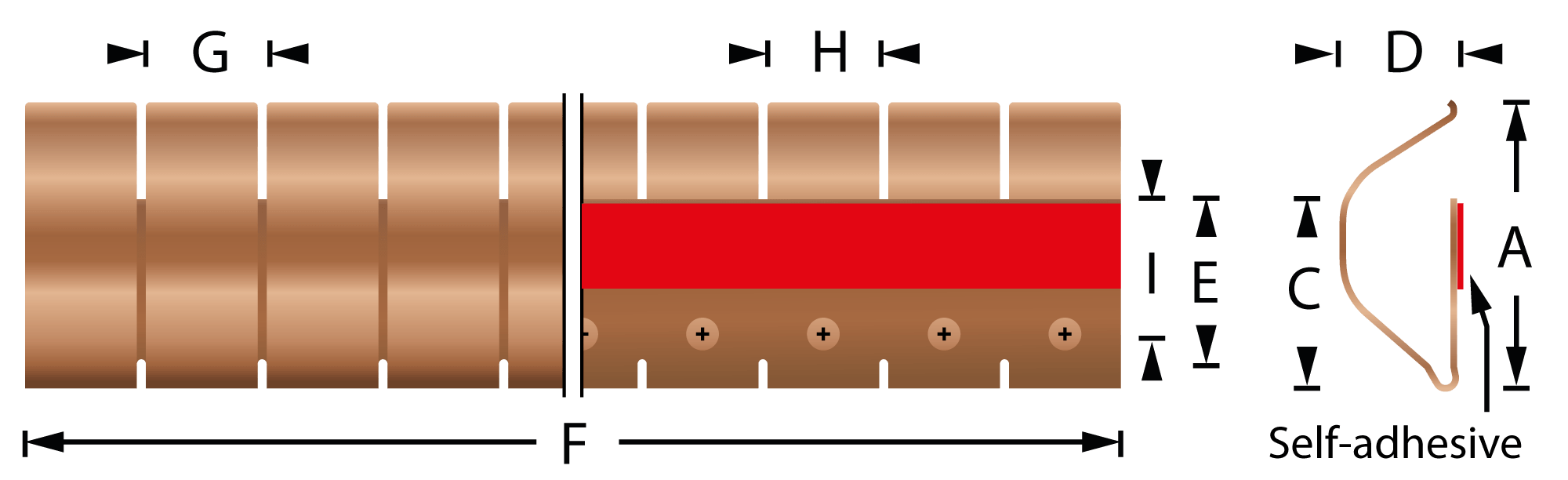

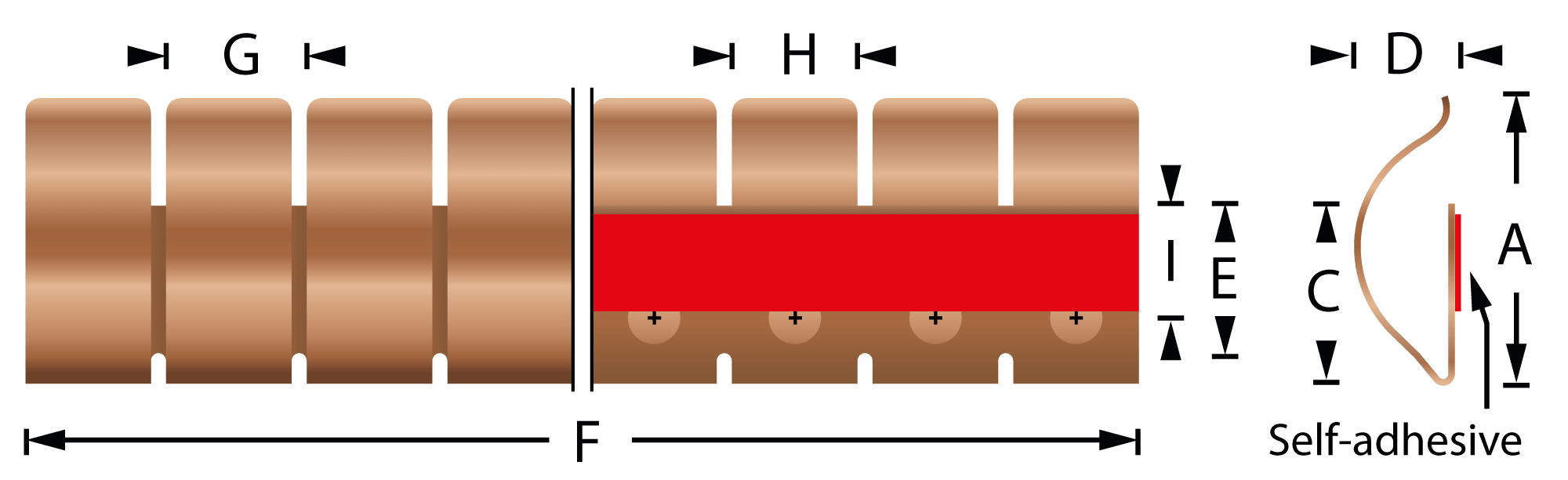

Stick-on 2302
Stick-on mounting fingerstrip gaskets
2302-01, 2302-03, 2302-04(R)
Stick-on mounting fingerstrip gaskets
2302-05
Stick-on mounting fingerstrip gaskets
2302-06
  Part number A C D E F G H I Ø Material thickness
2302-01 6.7 5.5 3.10   405.84 4.78 4.32 - - 0.07 mm
2302-03 9.0 7.5 4.0   406,48 6.36 5.8 - - 0.08 mm
2302-04 14.5 12.6 5.6   608.47 9.52 8.71 - - 0.09 mm
2302-04R 14.5 12.6 5.6   7620
(on roll)		 9.52 8.71 - - 0.09 mm
2302-05 19.4 12.0 6.4 10 609.6 9.53 8.51 7.6 3.6 0.10 mm
2302-06 29.7 12.8 12.3 17 303.78 12.7 11.68 14.3 3.6 0.18 mm
Material: Beryllium-copper
Stick-on 2305
Stick-on mounting fingerstrip gaskets
  Part number A C D F G H Material thickness Compression
2305-01 5.8 3.6 0.8 610 2.4 2.0 0.08 mm
2305-02 8.6 4.6 1.8 610 4.2 3.8 0.08 mm 25%: 13kg/m
50%: 33kg/m
2305-03 12.7 6.4 3.0 405 6.4 6.0 0.08 mm 25%: 7kg/m
50%: 15kg/m
2305-04 8.6 4.6 1.8 7600 (roll) 4.2 3.8 0.08 mm 25%: 13kg/m
50%: 33kg/m
Material: Beryllium-copper
