Mu-copper Faraday cages

mu copper faraday cages icon 1

Series

Allowed maximum size is 64 MiB. You can upload multiple files
Mu-copper wall covering system

Mu-copper foil has high attenuation properties in the electrical field (up to 120 dB) as well as in the magnetic field.

It is easy to apply, like wallpaper, thanks to its special adhesive for walls, ceilings and floors. The interior finish can be plaster board, foam tiles or plywood.

The 0.12 mm thick Mu-Copper is used to transform a regular room into a shielded room; the product has excellent shielding performance even at low frequencies. The system is easy to mount on shielded doors with clamping devices. The standard width of Mu-Copper is 1000 mm. The foil can be delivered on rolls or as ready-made sheets.


Overlap options

For the joints you can use a 50 mm overlap. For extra high performance you can fully solder the joints or use a seaming/copper tape with a conductive self-adhesive to apply over the joints.

u-copper faraday cages overlap soldered seaming tape
Ventilation

For ventilation we have developed honeycomb ventilation panels. Especially for the Mu-copper Faraday cages we can deliver honeycomb vent panels with a Mu-copper flap around the edges. It is easy to solder these into the Mu-copper Faraday cage.

Advantages
  • Cost-effective / takes up little space
  • Light weight / high floor load
  • Can be constructed with local labour
  • Standard interior finish possible like plasterboard
  • Can be delivered with 10 year guarantee
  • Maintenance free
  • Delivery with turnkey measurement report
  • Many sizes directly available from stock, custom designs available within a few weeks
  • Standard 10 years warranty, moving parts and electronics excluded.

Advantages over mesh

Mesh does not protect against high frequencies and it is difficult to connect all wires or the mesh in big constructions.
With foil you can use the whole surface to create coupling.


Applications
  • EMI shielded server room
  • EMI shielded MRI room
  • Server rooms
  • EMC test rooms
  • Computer rooms
  • Medical examination rooms
  • MRI, EEG, EMG & EVP
  • Rooms for physiotherapy
  • Radar protection/Airport
  • TEMPEST Sites
  • Military EMC protection
  • Board room shielding
  • Industrial espionage/ Secure room
  • Buildings for intelligence agencies

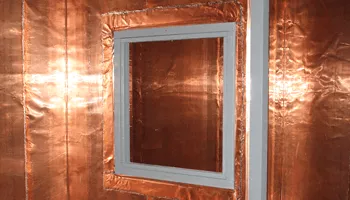

Mu-copper Faraday cage window door

Mu-copper Faraday cage window

Mu-copper Faraday cage honeycomb

Mu-copper Faraday cage honeycombs

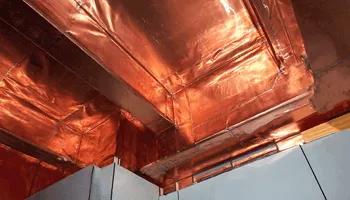

Mu-copper Faraday cage workmanship

Mu-copper Faraday cage workmanship


Shielding performance

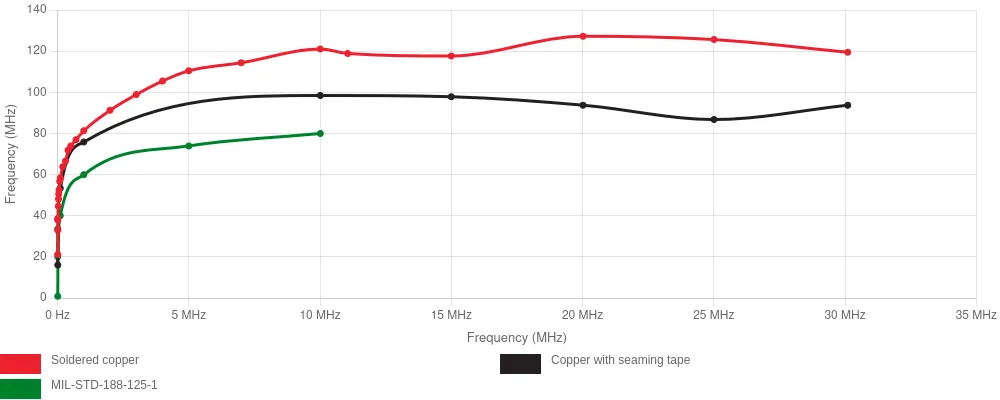

Copper cage magnetic

Mu-copper cage Shielding performance magnetic

Please note: These values are measured under laboratory conditions. Results may vary in other situations; please read our Guarantee.

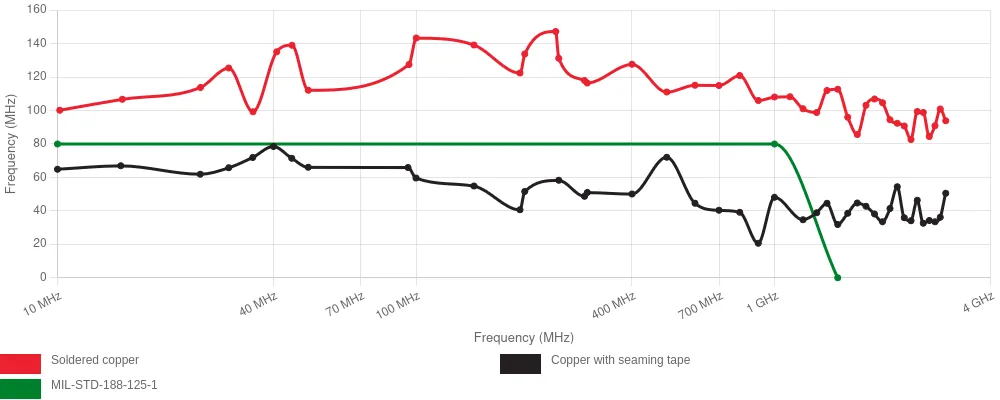

Copper cage electric

Mu-copper cage electric

Please note: These values are measured under laboratory conditions. Results may vary in other situations; please read our Guarantee.


You can create a Faraday cage with high shielding performance yourself in an economic way, using local labour. This is possible in existing buildings as well as in new ones, without loss of space. Depending on the quality of the doors, vent panels, filters and/or windows used, attenuation levels up to 80-100 dB in the E-field can be realized. When more layers are applied, it is possible to achieve over 120 dB.

Options

The Mu-copper Faraday cage can be equipped with the following options:

  • Waveguides for data communication
  • Shielded windows
  • Shielded ventilation panels
  • Power line filters
  • Signal line filters
  • Shielding solutions for water pipes and (medical) gases
  • Standard interior finish is possible (like glued plasterboard, foam tiles or plywood)

Ceiling

The system can be used with a detachable or fixed ceiling to separate existing ducts and cables from the shielded room.

Mu-copper cage ceiling

Modified RF shielded door
EMI RFI shielded Faraday cage EMI-RFI shielded doors

When a lower performance of e.g. 40-60 dB is acceptable, we can retrofit your existing door. The door is then equipped with gaskets at the top and sides, and with a conductive copper brush and doorstep at the bottom.

For heavy duty applications we can supply Faraday cage doors that offer up to 140 dB reduction.

For more information see our Faraday cage doors webpage


Components

In addition to EM shielded doors and windows, the screened rooms can be equipped with the foil.


We also offer shielding solutions for water pipes, medical gases, and ventilation when needed.

How to order

You can indicate below how many square meters Mu-copper foil you need to cover your room. You can also specify if you want an offer for adhesives for pasting the Mu-copper on the walls and solder for closing the seams. In order to make a more specific offer for a Mu-copper cage please contact us with your drawing.
