High performance shielded Faraday cage windows

faraday cage window 1

Series

Specify the width in mm including the frame.
Specify the length in mm including the frame.

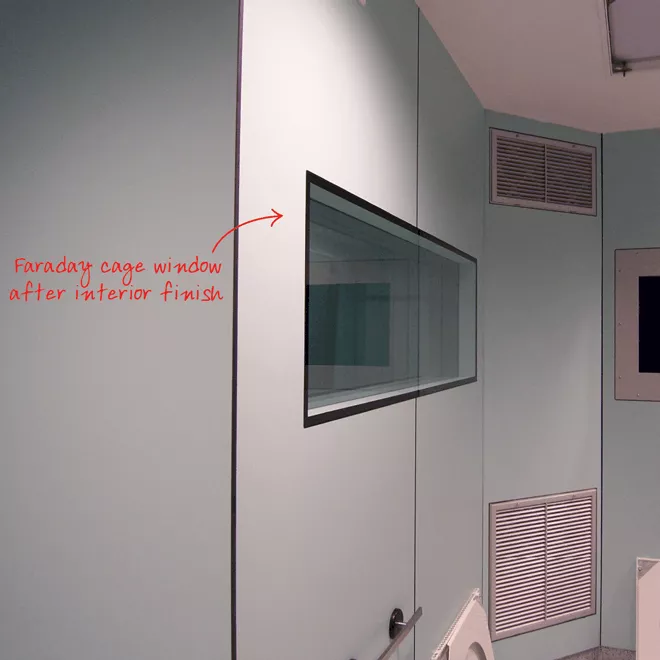

We manufacture Faraday cage windows ready for installation. These windows guarantee very high EMI/RFI/EMC-shielding performance. Faraday cage windows can be manufactured in any dimension and according to the customer's drawing.

A Faraday cage window is made up of several EMI/RFI-shielding products.

We put two layers of EMI/RFI shielded mesh foil windows on either side of 9000 series Mesh foil to ensure very high shielding performance in a wide frequency range. We can eventual make shielded windows in huge sizes. For example 3000 x  6000 mm

These three layers are held together by an aluminium frame for easy installation. The aluminium frame is provided with an electrically conductive Amucor shielding gasket to ensure good electrical contact with the Faraday cage.
