Medium shielded experiment box

medium shielded experiment box icon 1

Series

Medium shielded experiment box (224.6 x 320 x 162.3 mm)
  • Application: for Bluetooth, WiFi, 3G, wireless test
  • Frequency: 0∼6000 MHz.
  • Working size (mm): 224.6 (W) * 320 (D) * 162.3 (H)

Technical details
Shielding effect ≥70 dB @2.4 GHz
≥65 dB @5.8 GHz
Interface type See our filter modules
Numbers of filters possible 2 pcs
Working temperature (°C) (0-70)
Working Dimensions (mm) 224 (W) * 320 (D) * 162 (H)
Outer Dimensions (mm) 240 (W) * 389 (D) * 217 (H)
Weight (kg) 8 kg
* Notice: dimensions are indicative
Features
  • High levels of shielding attenuation, greater than 70 dB
  • Box can be equipped with shielded power filters
  • Connection in the box while still blocking all wireless signals
  • Easy & Flexible operation in Lab and production line.
  • R&D, custom design
  • Easy to transport

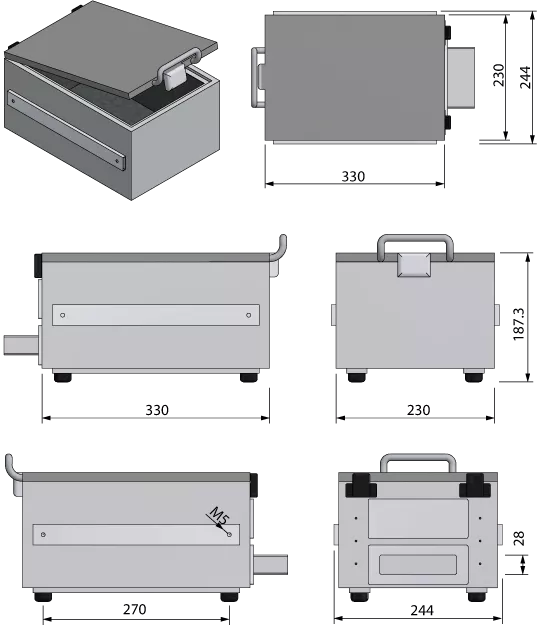

Technical drawing
Medium shielded experiment box Technical drawing dimensions
