Investigation box (with gloves & window)

investigation box with gloves window icon 1

Series

Investigation box (with gloves & window) (500 x 400 x 406mm)

The Investigation box/shielding box is designed for medium shielding performance of around 80 dB and keeping contact with the device under investigation.

The box is also equipped with shielded gloves so you can use and operate the appliances inside the box, without having to open the box and thus retain the shield.

By using the built-in LED lighting, it is possible to have a good view on the device and your hands inside the box.


Technical specifications
Shielding effect ≥65 dB
Interface type See: Filter modules for shielded boxes
Number of filters 4
Working temperature (°C) Normal work
Working Dimensions (mm) 500(W)*400(D)*406(H)
Outer Dimensions (mm) 547(W)*447(D)*438(H)
Weight (kg) 36
Colour of appearance Beige
* Notice: dimensions are indicative

Shielding performance
Investigation box with gloves & window Shielding performance attenuation
Features
  • High levels of shielding attenuation, greater than 80 dB
  • Box can be equipped with shielded power filters
  • Connection in the box while still blocking all wireless signals
  • Easy & Flexible operation in Lab and production line
  • R&D, custom design

Gas springs

The shielded box is equipped with gas springs that make opening and closing the box easy.

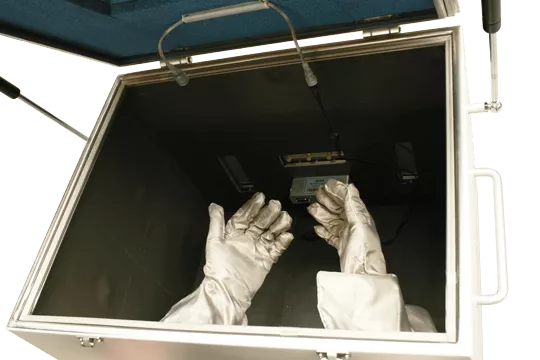

Investigation box with gloves window inside view with LED light and gas spring
Investigation box with built-in LED light & gas springs

Technical drawing
Investigation box with gloves window Technical drawing dimensions
