Conductive mesh

conductive mesh icon 1

Related pages

emi rfi shielded mesh foil windows icon 1

EMI/RFI shielded mesh foil windows
transparent shielding foil icon 1

Transparent EMI/RFI-shielding foil

Series

Specify the width of the sheet in mm.
Specify the length of the sheet in mm.

Conductive mesh is made of polyester coated with nickel and copper. The base layer is copper, which is highly conductive, and the outer layer is nickel for corrosion resistance. Nickel/copper coated polyester fabric offers excellent surface conductivity, shielding effectiveness, and corrosion resistance for a variety of applications. Conductive mesh is recommended to obtain high EMI shielding at a frequency range of 500 kHz to 10 GHz.

Conductive mesh 2000mm width

Also available a stainless steel version of the conductive mesh with a maximum width of 2000 mm. See the Conductive mesh width 2000 mm webpage for more information.

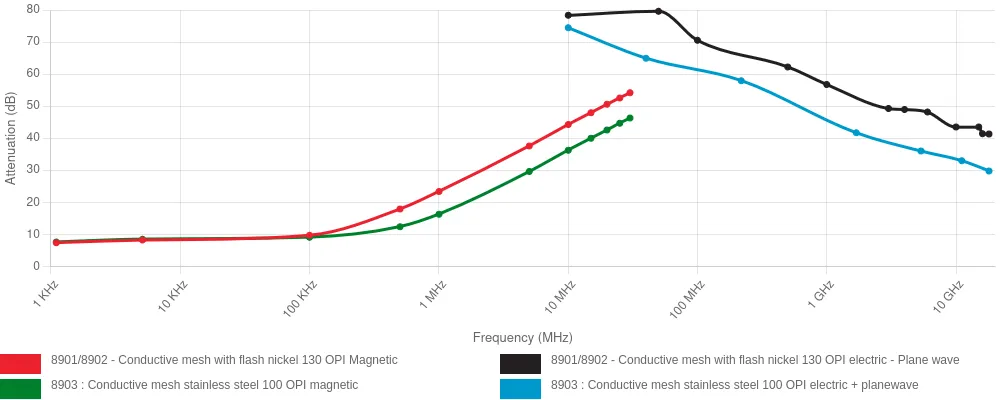

8900 series - Conductive mesh

8900 series - Conductive mesh

Features
  • Extremely delicate, lightweight and flexible
  • Used for EMI/RFI-shielded windows
  • Used to make windows in a Faraday tent
  • DFAR compliant
  • 80 to 130 OPI
  • Used in outer-space probes and leading physics laboratories
Applications
  • Electric-magnetic field shielding
Technical details
Material 8901  8902 8903
wires/inch (OPI) 130 130 100
Mesh total thickness (mm) 0.085 ±0.01 0.085 ±0.01 0.050 ±0.01
Nominal Aaperture (mm) 0.110 0.110 0.204
Light Transmission % 64.5 64.5 64.5
Characteristics
Item Unit Spec. Reference
Roll width mm 1000
Roll length   30 meters
Mesh/OPI   80 - 130
Mesh total thickness (mm) mm 0.085±0.01
Surface resistivity Ω/square < 0.13 MIL -G-83528
Shielding effectiveness dB min. 60 ASTM D 4935 Method
Mesh count Inch 130 #130
