Stick-on mounting fingerstock gaskets with pressure-sensitive adhesive (PSA) are suitable for low-profile, bi-directional applications like rack mounting of line-cards in telecommunications equipment.

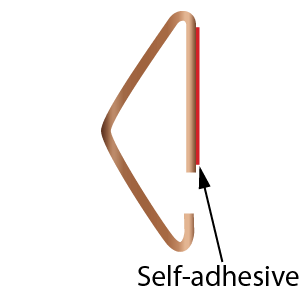

A red line indicates the self-adhesive strip.
These gaskets offer high EMI-shielding performance in applications where space may be limited. Stick-on mounting fingerstrips are low-compression, adhesive-mounted beryllium-copper shielding strips. The self-adhesive tape makes mounting easy and secure.
Fingerstrips as STP files
To receive the STP files of the fingerstrips please contact us with the partnumber you need.
Stick-on mounting fingerstrip 2332
2332-02
2332-05
| Part number | A | D | F | G | H | Material thickness | |
|---|---|---|---|---|---|---|---|
| 2332-02 | 9.7 | 3.2 | 406 | 4.8 | 4.3 | 0.07 mm | |
| 2332-05 | 19.3 | 5.8 | 608 | 9.5 | 8.8 | 0.10 mm |
Stick-on mounting fingerstrip 2334
| Part number | A | C | D | F | G | H | Material thickness | Compression | |
|---|---|---|---|---|---|---|---|---|---|
| 2334-01 | 8.1 | 5.3 | 2.8 | 408 | 4.8 | 4.3 | 0.05 mm | ||
| 2334-04 | 9.4 | 5.3 | 3.3 | 406 | 6.4 | 5.7 | 0.05 mm | 25% 15 kg/m 50% 31 kg/m |
Stick-on mounting fingerstrip 2335
2335-01
2335-02
| Part number | A | C | D | F | G | H | Material thickness | Compression | |
|---|---|---|---|---|---|---|---|---|---|
| 2335-01 | 19.8 | 15.2 | 5.6 | 456 | 9.5 | 8.7 | 0.09 mm | ||
| 2335-02 | 12.7 | 9.4 | 3.3 | 406 | 6.35 | 5.72 | 0.05 mm |
25% Compression – 50% Compression 15 kg/m to 31 kg/m |

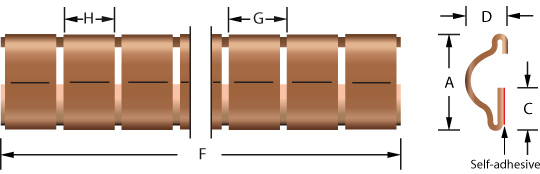

Stick-on mounting fingerstrip 2336
| Part number | A | C | D | F | G | H | Material thickness | |
|---|---|---|---|---|---|---|---|---|
| 2336-04 | 15.2 | 7.4 | 5.6 | 457 | 9.5 | 8.7 | 0.09 mm |

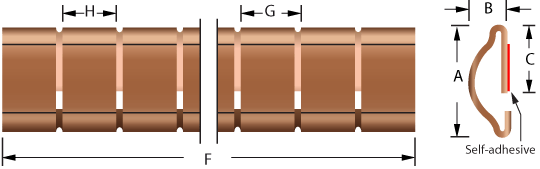

Stick-on mounting fingerstrip 2338
| Part number | A | C | D | F | G | H | Material thickness | Compression | |
|---|---|---|---|---|---|---|---|---|---|
| 2338-01 | 8.1 | 4.8 | 2.5 | 406 | 4.0 | 3.5 | 0.10 mm | 25% 45 kg/m 50% 112 kg/m Max. length A when compressed: 9.9 mm |
|
| 2338-02 | 8.1 | 4.8 | 2.5 | 406 | 4.8 | 3.5 | 0.10 mm | 25% 45 kg/m 50% 112 kg/m Max. length A when compressed: 9.9 mm |
|
| 2338-03 | 9.4 | 4.8 | 3.3 | 406 | 6.4 | 5.7 | 0.10 mm | 25% 44 kg/m 50% 88 kg/m Max. length A when compressed: 13 mm |
|
| 2338-04 | 9.4 | 4.8 | 3.3 | 406 | 3.2 | 2.8 | 0.10 mm | 25% 44 kg/m 50% 88 kg/m Max. length A when compressed: 13 mm |
|
| 2338-05 | 15.3 | 4.8 | 5.6 | 457 | 9.5 | 8.7 | 0.10 mm | 25% 19 kg/m 50% 47 kg/m Max. length A when compressed: 19.7 mm |
|
| 2338-06 | 15.3 | 4.8 | 5.6 | 457 | 4.8 | 4.2 | 0.10 mm | 25% 19 kg/m 50% 47 kg/m Max. length A when compressed: 19.7 mm |
