Stick-on mounting fingerstrip
- Home
- EMI shielding gaskets solutions
- Fingerstrips
- Stick-on mounting fingerstrip

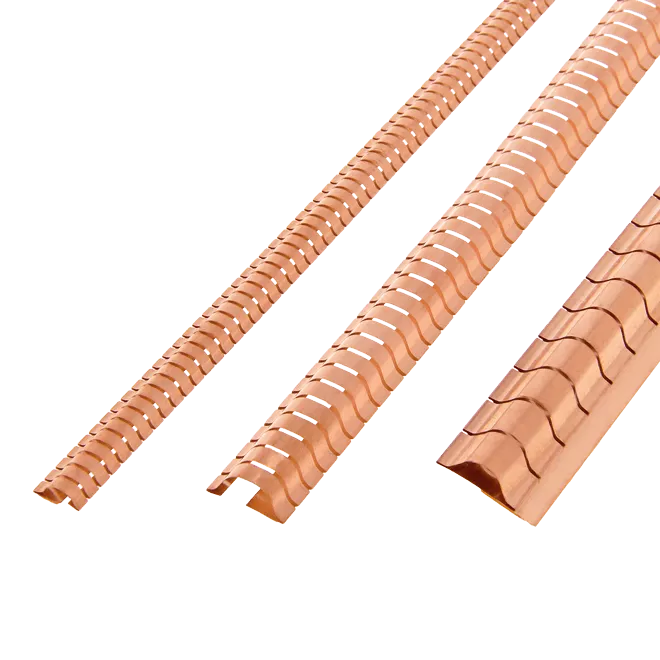

Stick-on mounting fingerstock gaskets with pressure-sensitive adhesive (PSA), suitable for low-profile, bi-directional applications such as the rack mounting of linecards in telecommunications equipment.
Fingerstrips as STP files
To receive the STP files of the fingerstrips please contact us with the partnumber you need.
The gasket offers high EMI-shielding performance in applications where space may be limited. Stick-on mounting fingerstrips are low-compression, adhesive-mounted beryllium-copper shielding strips. The self-adhesive tape makes mounting easy and secure.
Stick-on mounting fingerstrip 2332

2332-02

2332-05
Part number | A | D | F | G | H | Material thickness | |
---|---|---|---|---|---|---|---|
2332-02 | 9.7 | 3.2 | 406 | 4.8 | 4.3 | 0.07 mm | |
2332-05 | 19.3 | 5.8 | 608 | 9.5 | 8.8 | 0.10 mm |
Stick-on mounting fingerstrip 2334

Part number | A | C | D | F | G | H | Material thickness | Compression | |
---|---|---|---|---|---|---|---|---|---|
2334-01 | 8.1 | 5.3 | 2.8 | 408 | 4.8 | 4.3 | 0.05 mm | ||
2334-04 | 9.4 | 5.3 | 3.3 | 406 | 6.4 | 5.7 | 0.05 mm | 25% 15 kg/m 50% 31 kg/m |
Stick-on mounting fingerstrip 2335

2335-01

2335-02
Part number | A | C | D | F | G | H | Material thickness | Compression | |
---|---|---|---|---|---|---|---|---|---|
2335-01 | 19.8 | 15.2 | 5.6 | 456 | 9.5 | 8.7 | 0.09 mm | ||
2335-02 | 12.7 | 9.4 | 3.3 | 406 | 6.35 | 5.72 | 0.05 mm |
25% Compression – 50% Compression 15 kg/m to 31 kg/m |
Stick-on mounting fingerstrip 2336

Part number | A | C | D | F | G | H | Material thickness | |
---|---|---|---|---|---|---|---|---|
2336-04 | 15.2 | 7.4 | 5.6 | 457 | 9.5 | 8.7 | 0.09 mm |
Stick-on mounting fingerstrip 2338

Part number | A | C | D | F | G | H | Material thickness | Compression | |
---|---|---|---|---|---|---|---|---|---|
2338-01 | 8.1 | 4.8 | 2.5 | 406 | 4.0 | 3.5 | 0.10 mm | 25% 45 kg/m 50% 112 kg/m Max. length A when compressed: 9.9 mm |
|
2338-02 | 8.1 | 4.8 | 2.5 | 406 | 4.8 | 3.5 | 0.10 mm | 25% 45 kg/m 50% 112 kg/m Max. length A when compressed: 9.9 mm |
|
2338-03 | 9.4 | 4.8 | 3.3 | 406 | 6.4 | 5.7 | 0.10 mm | 25% 44 kg/m 50% 88 kg/m Max. length A when compressed: 13 mm |
|
2338-04 | 9.4 | 4.8 | 3.3 | 406 | 3.2 | 2.8 | 0.10 mm | 25% 44 kg/m 50% 88 kg/m Max. length A when compressed: 13 mm |
|
2338-05 | 15.3 | 4.8 | 5.6 | 457 | 9.5 | 8.7 | 0.10 mm | 25% 19 kg/m 50% 47 kg/m Max. length A when compressed: 19.7 mm |
|
2338-06 | 15.3 | 4.8 | 5.6 | 457 | 4.8 | 4.2 | 0.10 mm | 25% 19 kg/m 50% 47 kg/m Max. length A when compressed: 19.7 mm |
