USB 3.0 converter set

Series

The USB 3.0 converter can easily be mounted on EMI‑shielded test chambers, R&D Faraday cages, and shielded cabinets with the included waveguide. Your data will be routed through the USB 3.0 port to the in or outside of the enclosure. It can be connected to 4 USB 3.0 through 2 twin fiber cables. The connected devices can be increased by a additional USB hub.

This construction minimizes unwanted electromagnetic leakage while still allowing convenient connection of USB 3.0 cabling. A drill plate is delivered with the set for easy installation on the shielded room. A true plug-and-play solution, the set is compatible with all leading operation systems. Note: backward compatibility with USB 2.0/1.1.

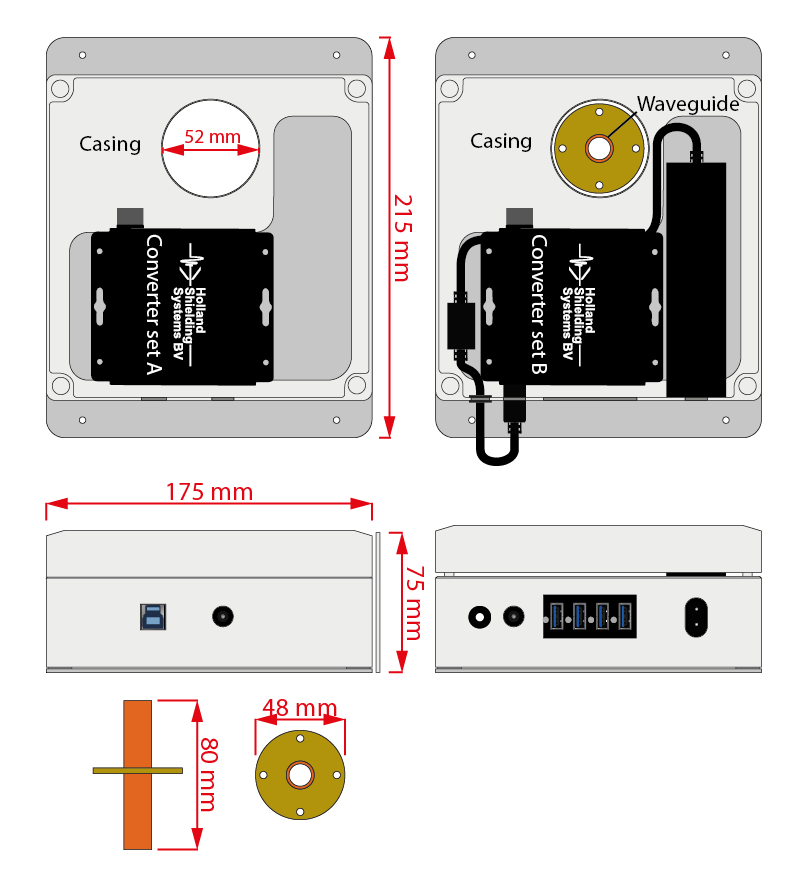

Technical drawing
USB 3.0 converter set with casing
Features
  • True plug and play
  • Easy installation on a on EMI shielded test chambers, R&D Faraday cages, and shielded cabinets
  • Extends USB 3.0 supper-speed, backward compatibility with USB 2.0/1.1. X Operates with USB 3.0 hosts
  • Number of devices can be increased using additional USB hubs
  • Software drivers required
  • Works with operating systems: Windows 7, Windows 8 and Windows 10
  • Low RFI / EMI profile for sensitive applications
  • Power adapter at host is not required
  • Connector: SC OS2 Simplex
Applications
  • Digital Sign-age
  • Industrial Control
  • KVM Extension
  • Conference Room Video Equipment
  • Home Network Integration
  • Medical Device Connectivity
  • Security: web camera, access control
  • USB Device Sharing: print, scan and storage
Technical Specifications of the USB 3.0 converter set
performance
Local unit Upstream port USB 3.0 Type B Male
Downstream port USB 3.0 SFS*1
Remote unit Upstream port USB 3.0 SFS*1
Downstream port 4-port
Operation mode Support USB 3.0 5 GBps, backwards compatability with USB 2.0/1.1
connections
USB 3.0 input (local unit) USB 3.0 Type-B Female
USB 3.0 Output (remote unit) USB3.0 Type-A Female
Optical 1x USB3.0 SFP+ port
Cable
Fiber cable type Multi-Mode Fiber: OM3-300 *2
Max. length ≤ 300 meters
Mechanical
Construction High-impact Alufer enclosure
Dimensions (L x W x H)
(Unit:mm)		 Local extender : 104*114*28
Remote extender: : 104*114*28
Net Weight Local extender: 200g Remote extender: 350g
Environmental
Operating temperature 32 °F to +122 °F (0 °C to +50 °C)
Storage temperature -40 °F to +185 °F (-40 °C to +85 °C)
Operating humidity 5% to 80% (non-condensing)
Storage humidity 5% to 95% (non-condensing)
power Requirements
External AC power adapter Local Unit: Power adapter at host is not required
Remote Unit:
Input: 100-240VAC / 50-60Hz 0.2A
Output: 5VDC, 2.0A 5/2.5mm jack
Power consumption Local unit:
2 Watts		 Remote unit: 3.5 watts
