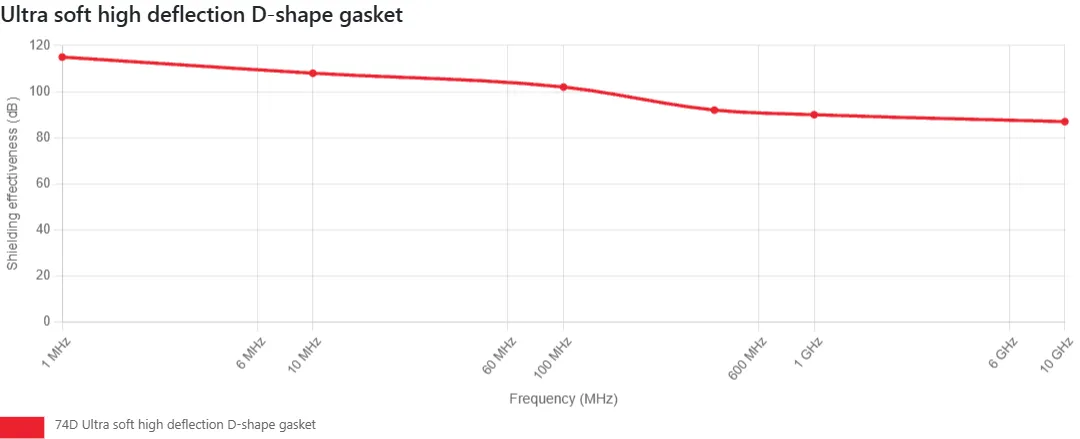

Ultra soft high deflection D-shape gasket

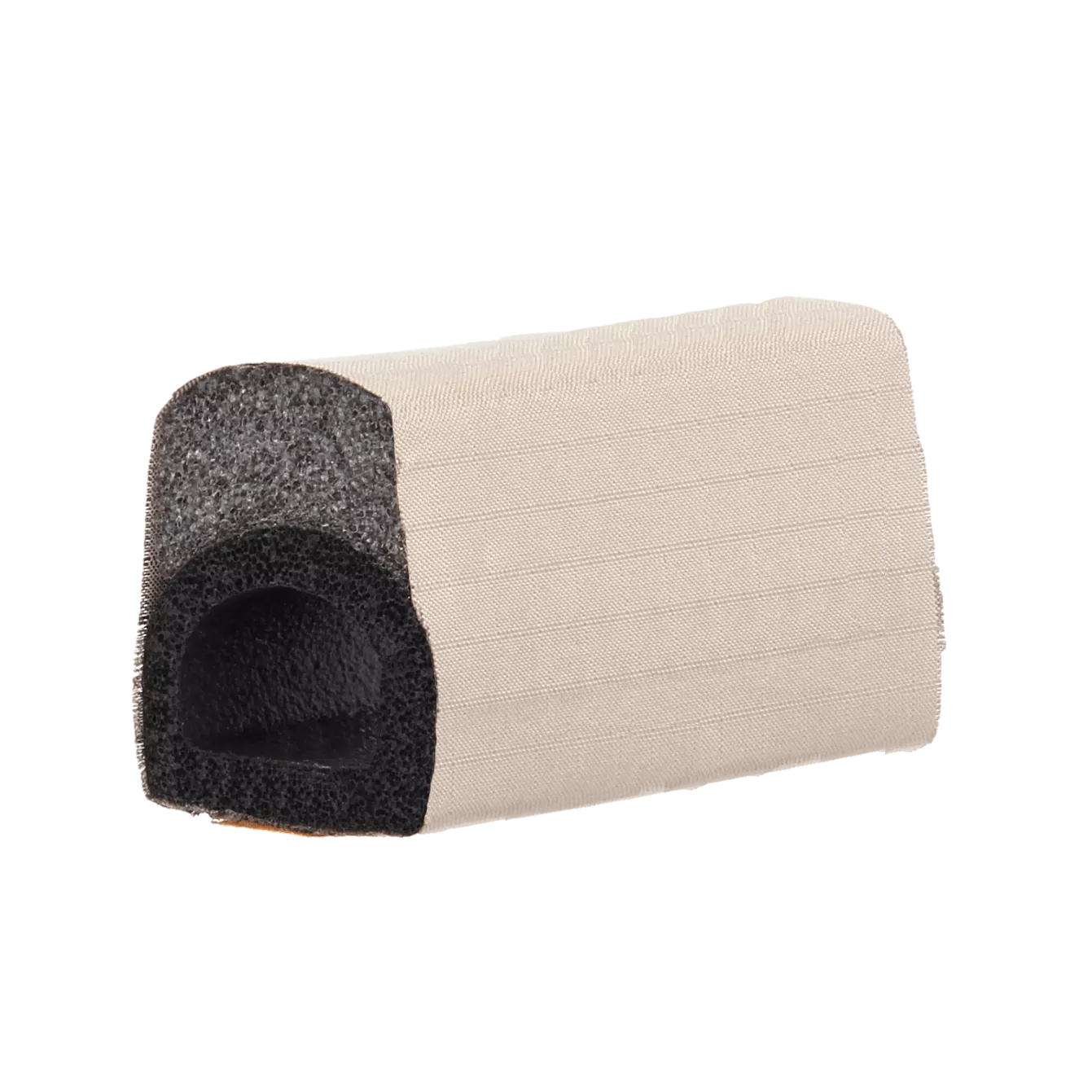

standard shield special profile

Related pages

ultra soft shield

Ultra soft shield

Series

Allowed maximum size is 64 MiB. You can upload multiple files
High deflection version

We have developed a combination gasket for an extremely high spring range. These gaskets are developed for applications where a high deflection and a high spring range is required. To give you an example. A 26 mm high deflection gasket can be compressed up to 7 mm without overly exerting excessive force. That is 70% compression at low force.

Ultra soft shield high deflection version
Part number 74D-763 74D-766 74D-769 74D-7612
Ultra soft shield High deflection Ultra soft shield High deflection version 7400763 Ultra soft shield High deflection version 7400766 Ultra soft shield High deflection version 7400769 Ultra soft shield High deflection version 74007612
Y x X mm 15 x 12mm 18 x 12mm 21 x 12mm 24 x 12mm

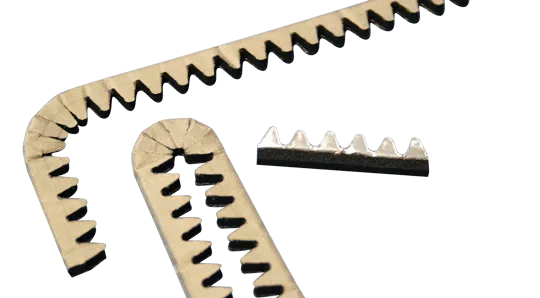

With recesses for easy bending

It is possible to cut at the desired position with small cuts, so that the gasket is easy to bend. see our EMI gaskets with cutouts according to drawing.
