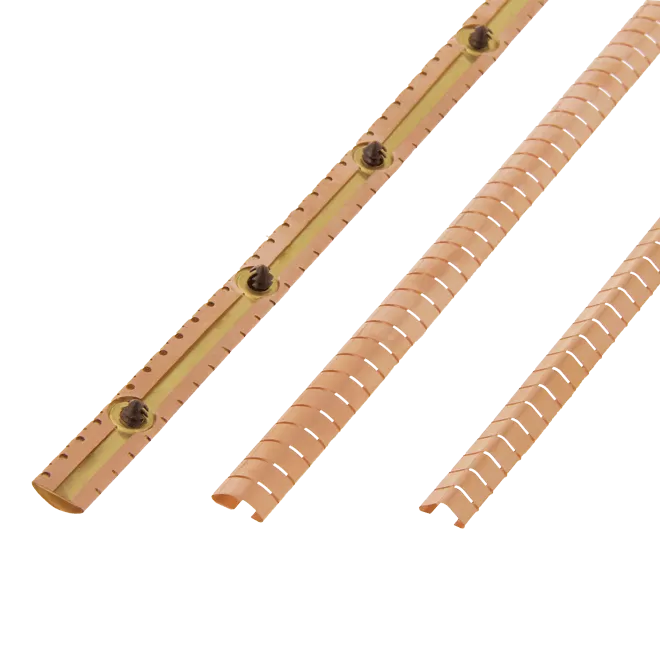

Snap-on mounting fingerstrip

snap on mounting fingerstrip

Series

These Snap-on fingerstrips have very low compression force and almost no friction when compressed. They are excellent for “sliding” applications. The symmetrical design allows two-way contact. Very convenient for ESD grounding and RFI/EMI shielding of:

  • Front panel handles
  • Doors in shielded housings
  • Panels in shielded enclosures
  • Covers of shielded enclosures
  • Sliding trays
  • Assembly of plug-in units
  • Back planes
  • And other electronic enclosure applications
Installation is simple
  • Press and hold the edge of the fingerstrip gasket in one of the grooves
  • Push in the direction of the second groove until the
    fingerstrip snaps into the second groove
Snap-on mounting fingerstrip NOTE: For some fingerstrips special Snap-on fingerstrip tracks are available for mounting.
Fingerstrips as STP files

To receive the STP files of the fingerstrips please contact us with the part number you need.


Snap-on 2202
Snap-on mounting fingerstrip

2202-01, 2202-05 and 2202-07

Snap-on mounting fingerstrip

2202-02, 2202-04 and 2202-08

  Part number A D F G H Material thickness Available
mounting track
2202-01* 9.1 2.8 403 4.8 4.3 0.08 mm -
2202-02 9.1 2.8 403 4.8 4.3 0.08 mm TR2202-02
2202-04 11.4 3.6 383 6.4 5.8 0.08 mm TR2202-04
2202-05* 15.8 5.6 379 9.6 8.8 0.10 mm -
2202-07* 8.9 2.8 508 4.8 4.3 0.08 mm -
2202-08 8.9 2.8 508 4.8 4.3 0.08 mm
* With adhesive strip
Material: Beryllium-copper

Clip-on 2203
Snap-on mounting fingerstrip

The low fingerstrip profile of .080" (2.0 mm) enables practical installation and compression in very narrow grooves and openings. The long, slender fingerstrip profile has very low compression force and is very durable. Works well with "wiping" applications.

  Part number A D F G H Material thickness Available mounting track
2203-01 7.6 3.3 406 4.8 4.3 0.05 mm TR2203-03
2203-02 8.1 2.5 406 4.8 4.2 0.05 mm TR2203-03
2203-03 8.1 2.9 400 4.8 4.3 0.05 mm TR2203-03
2203-04 8.1 2.8 406 4.8 4.3 0.05 mm TR2203-03
2203-05 9.1 3.0 381 4.8 4.3 0.05 mm
2203-06 9.4 3.3 400 6.5 5.7 0.05 mm TR2203-06
2203-08 15.2 5.8 457 7.2 6.4 0.08 mm TR2203-07
2203-09 15.3 5.6 400 9.5 8.7 0.05 mm TR2203-07
2203-10 19.5 8.1 400 9.5 8.7 0.08 mm TR2203-10
2203-11 20.3 8.1 400 9.5 8.7 0.10 mm TR2203-11
Material: Beryllium-copper

Clip-on 2204
Snap-on mounting fingerstrip

2204-01 and 2204-02

  Part number A C D F G H Material thickness
2204-01 11.4 6.0 2.0 406 3.1 2.5 0.05 mm
2204-02 15.2 8.2 3.0 406 3.1 2.5 0.05 mm
Material: Beryllium-copper

Clip-on 2205
Snap-on mounting fingerstrip
  Part number A B D F G H Material thickness
2205-02 15.2 max 2 2.3 406 3.2 2.5 0.09 mm
2205-03 14.0 max 1.5 2.0 406 3.2 2.5 0.09 mm
2205-04 19.1 max 1.5 3.0 406 3.2 2.5 0.09 mm
Material: Beryllium-copper

Clip-on 2206

Tin plated beryllium-copper fingerstrip on a brass track with double transfer tape, scored for break off after each pitch.

Snap-on mounting fingerstrip Snap-on mounting fingerstrip
  Part number A B C D F G Material thickness
2206-01 19.0 2.8 13.5 5.6 406 16.8 0.09 mm
Material: tin plated beryllium-copper fingerstrip with brass track

Snap-on fingerstrip mounting tracks
snap on mounting fingerstip tracks

TR2202-02

snap on mounting fingerstip tracks

TR2202-04

snap on mounting fingerstip tracks

TR2202-06

snap on mounting fingerstip tracks

TR2203-03

snap on mounting fingerstip tracks

TR2203-06

snap on mounting fingerstip tracks

TR2203-07

snap on mounting fingerstip tracks

TR2203-10

snap on mounting fingerstip tracks

TR2203-11

The installation of the 2200 Series can be directly in your housing using slots or alternatively using a Snap-on fingerstrips track (mounting rail).

  Part number
TR2202-02
TR2202-04
TR2202-06
TR2203-03
TR2203-06
TR2203-07
TR2203-10
TR2203-11

Snap-on fingerstrips rivet
Snap-on mounting fingerstrip

R-01

Snap-on mounting fingerstrip

R-02

  Part number
R-01 For plate thicknesses of 0.5 to 1.5 mm
R-02 For plate thicknesses of 1.1 to 1.9 mm

Mounting examples
Snap-on mounting fingerstrip

Ideally suited for applications where lids or doors (think of doors for a Faraday cage or EMI shielded enclosure) are repeatedly opened and closed.

Snap-on mounting fingerstrip

This type fingerstrip is also widely used in 19” racks, communication cabinets, communication cabinets, EMI/RFI shielded enclosures. The 2200 Snap-on Fingerstrips mounting series profiles can be used for earthing or electric connection.
