Semi-conductive conductor separation tape

Related pages

4771 semi conductive non woven icon 1

Semiconductive non-woven

Series

Specify the width in mm. Max. width of 960 mm
Specify the length in mm.

Holland Shielding Systems BV is a leading manufacturer of non-woven shielding foils and tapes. Our extensive product range contains both semi- and fully conductive foils and tapes for different applications such as EMI shielding and ESD applications.

Holland Shielding Systems BV is well-known for high quality products, our flexible converting capabilities and short lead times.

Dimensions

The 4772 series Semiconductive non-woven can be delivered as tape on roll or as foil. Minimum width is 10 mm and the maximum width is 960 mm.

The Semiconductive non-woven can also be delivered cut in any shape according to your CAD drawing.

Specifications
Properties 4772-0.20 Test method
Thickness (mm) 0.20 ISO 9073-2
Mass per unit area (g/m2) 147 ISO 9073-1
Tensile strength (N/cm) 100 ISO 9073-3
Elongation (%) 15 ISO 9073-3
Specific length resistivity (Ωcm) 10 DIN 54345 Part 5
Volume resistivity (kΩcm) 100 DIN 54345 Part 1
Service temperature (°C) < 140 IEC 60216 (TIS 045)
Processing temperature (°C) < 225 (TIS 045)
Max. width 960 mm
semi conductive conductor separation tape structure
Benefits
  • Good bedding performance
  • Good conductive properties
  • Thin and strong material
Applications
  • ESD lining
  • EMI shielding of cables
  • Shielding and electric field control

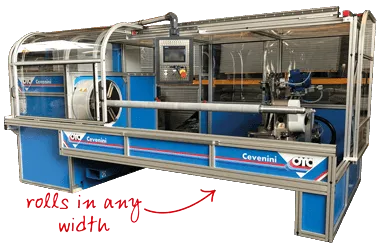

rolls made in any width
