Power line filter for ground wire

Just like power lines, ground wires connect the entire facility together. All human-reachable surfaces of electrical equipment must be at ground potential for safety reason. While safety practices are always a good idea, a side effect of such connections is that if one piece of equipment injects noise into ground for whatever reason (miswiring, improper design, poor maintenance, etc.), this noise propagates throughout the facility and enters other equipment. Ground filters are capable of reducing this noise while maintaining all safety practices.

If you are concerned about noise in your environment, ground filters are a good way to mitigate the problem.

Product range

Advantages

• Suitable for use under extreme conditions (military applications)
• Wear resistant
• Insensitive to corrosion

Applications

• S3 rooms
• Shielded room
• Shielded cabinet
• Anechoic chamber

Features

• Rated Voltage: 250 VAC, 500 VDC
• Operating Frequency: 0-60 Hz
• Voltage drop: Less than 1 V @ unity power factor.

Dimensional Diagrams

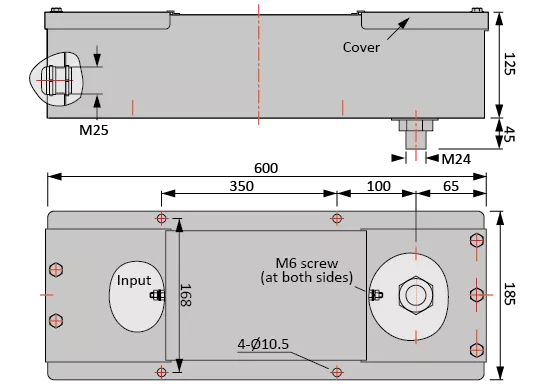

diagram 1

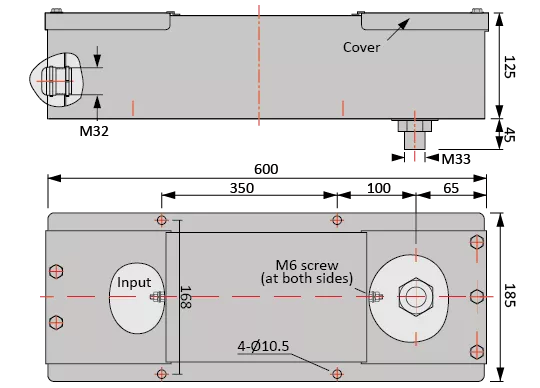

diagram 2
