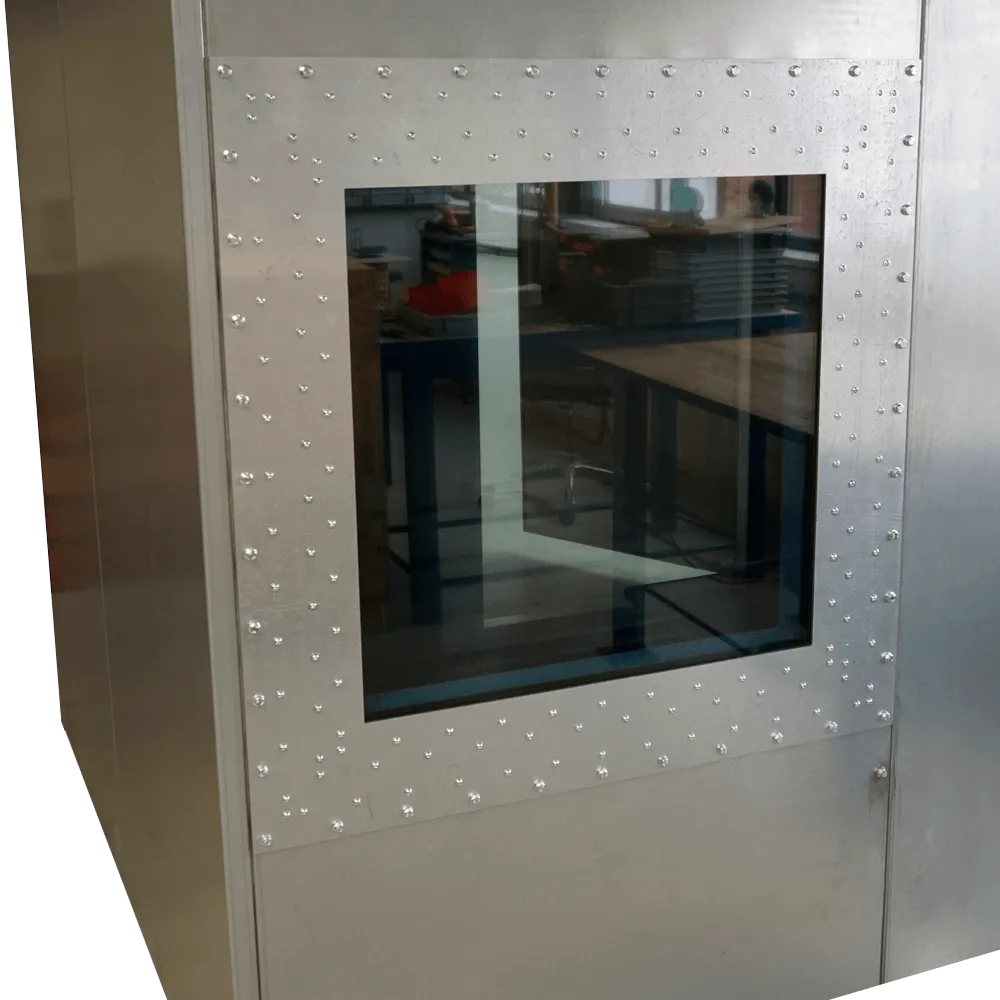

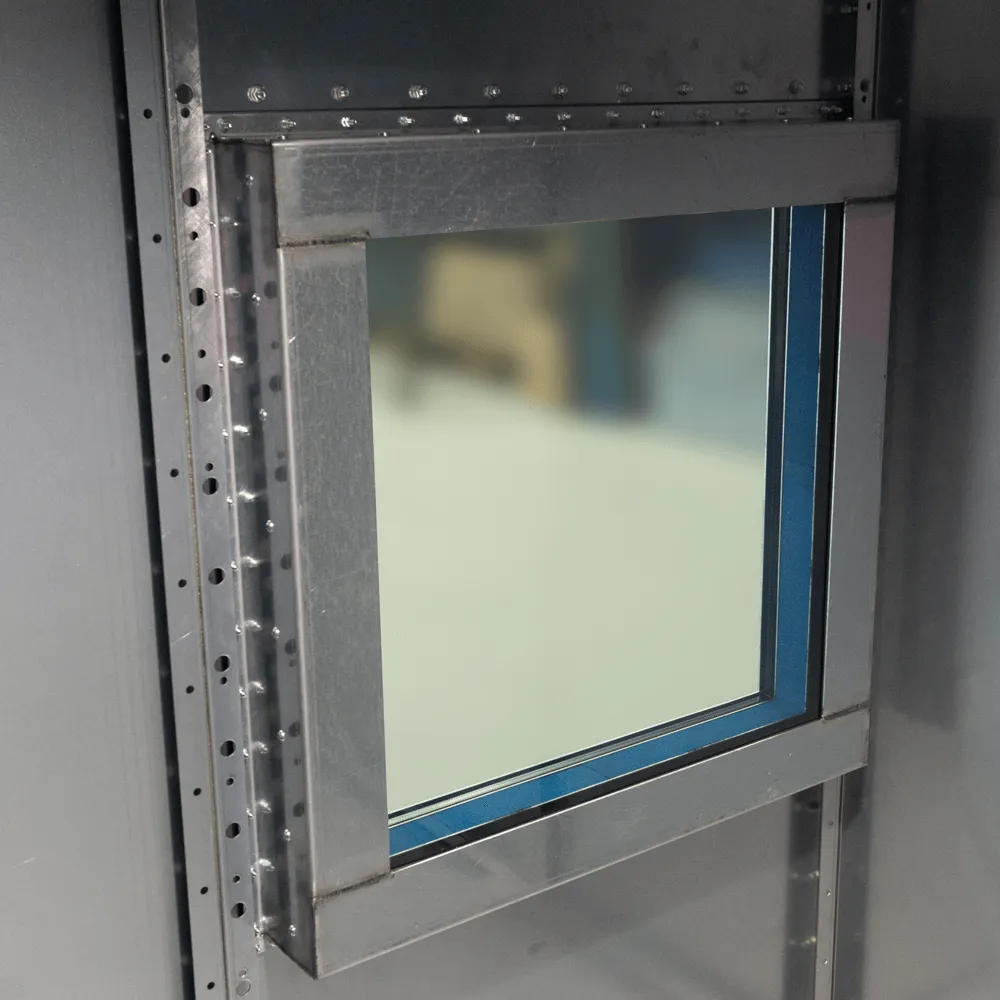

Multi layered performance shielded window

multi layered performance shielded window icon 1

Series

Specify the width in mm including the frame. Max 2000 mm.
Specify the Length in mm including the frame. Max 1200 mm.

The windows are designed with two versions, for high and low shielding performance.

Version 1 is especially for the EMI/RFI high frequency range . The window is 10 cm thick and there is a choice of a 3 or 4 layer variant. It can reach a shielding performance above the 120 dB.

Version 2 is designed for the low frequency range specifically for MRI/RFI applications where the shielding is 100db at 300MHz.

version 1: 10 cm thick, 3 layered or 4 layered foil
(high frequency range)

The 9750 version 1 is designed to get the highest EMI/RFI shielding performance depending on the amount of layers used in the window. There is a 3 layered and 4 layered option depending on your desired needs.

Shielded window designed for the high EMI/RFI and low frequency shielding 10 cm

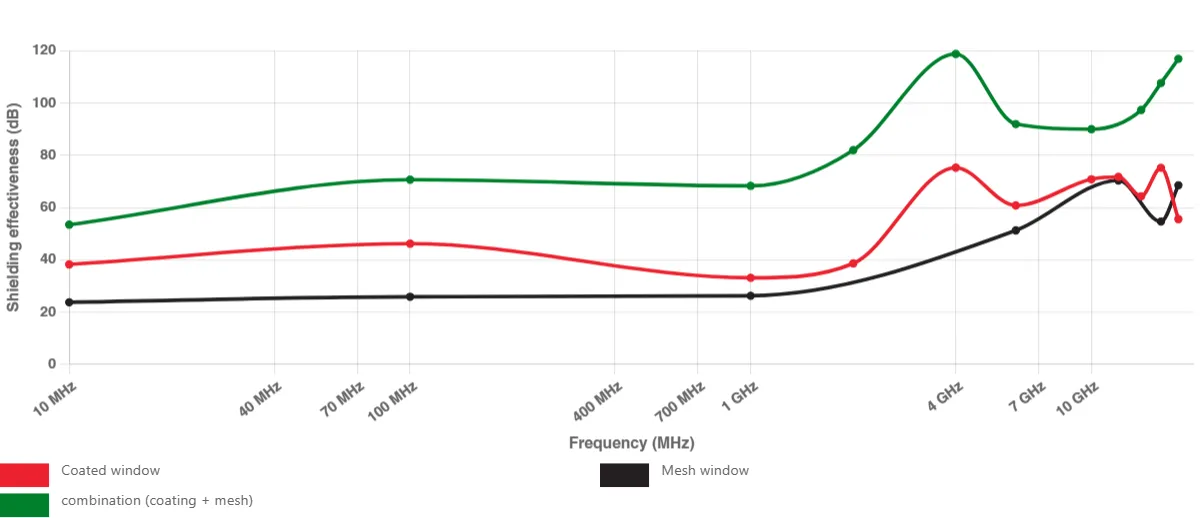

9750 Multi layered shielded window (10 cm)

9750 Multi layered shielded window (10 cm)

Please note : These values are measured under laboratory conditions. Results may vary in other situations; please read our Guarantee.

version 2: 20cm thick 2 layer foil
(low frequency range)

The 9750 version 2 is made for example MRI rooms in the low frequency range of 100 dB a 300 MHz. The window is 20cm thick and contains 2 layers of foil.


Shielded window designed for the high EMI/RFI and low frequency shielding 20 cm

9750 Multi layered shielded window (20cm)

9750 Multi layered shielded window (20 cm)

Please note : These values are measured under laboratory conditions. Results may vary in other situations; please read our Guarantee.
