High power SiC pyramid absorber
- Home
- EMI & RFID absorbers, ferrites & pyramids
- High power SiC pyramid absorber
1/1

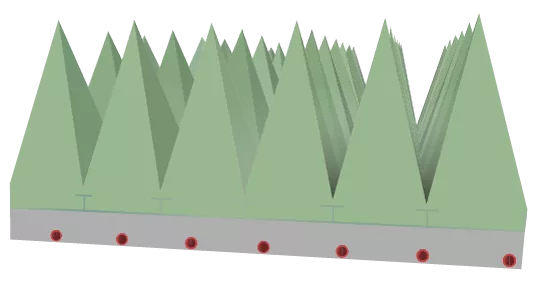

High-power silicon carbide pyramid absorbing material is a kind of inorganic sintered material, resistant to strong power, commonly used in high power absorbing box and comprehensive test for high power airborne antenna. Power resistance no less than 30 kw/m2, easy to install with a metal T shape slot on a cold plate and with high reliability. The base of the pyramid is 40x40mm.
| Part number | Thickness mm | Unit size A*B*C (mm) | Normall incidence reflectivity max(-dB) |
|||||
|---|---|---|---|---|---|---|---|---|
| Weight Kg/sqm |
(4 to 8 GHz) | (8 to 12 GHz) |
(12 to 18.0 GHz) | (18 to 27 GHz) | (27 to 40 GHz) | |||
| 3695-50 | 50 | 20x15x50 | 40 | -20dB | -25dB | -30dB | -35dB | -40dB |
| 3695-90 | 90 | 40x35x90 | 60 | -30dB | -35dB | -40dB | -40dB | -40dB |
| These values are measured under laboratory conditions. In your situation results may differ, please read our Guarantee |
||||||||
