High power handling microporous pyramid absorbers
- Home
- EMI & RFID absorbers, ferrites & pyramids
- High power handling microporous pyramid absorbers
Series
High power handling microporous pyramid absorbers can support inside and outside ventilation circulation, which would further improve the power handling capacity of such absorbers; it is mainly applied in high power shield cabinet, ventilation vents of anechoic chambers, and etc.

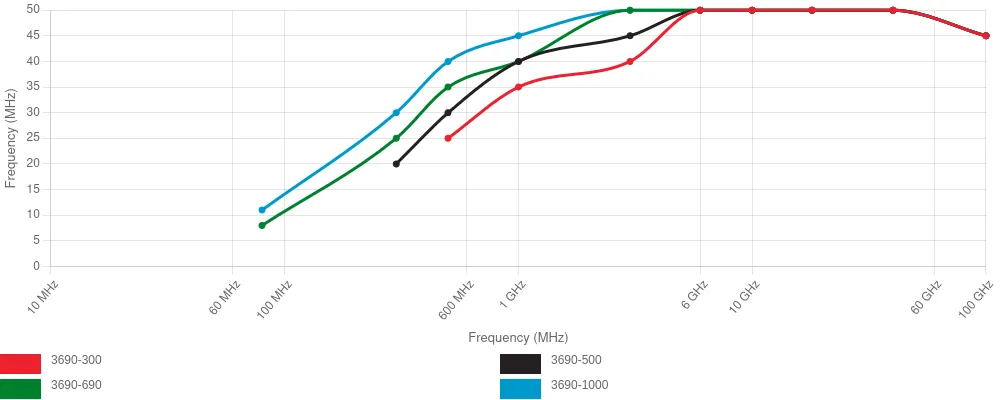

Reflection loss under vertical incidence (-dB @ GHz)
Characteristics
- Good flame retardant characteristics, it won’t burn when it encounters fire, it has oxygen index ≥ 60% and flame retardant B1 level.
- Good power handling property, power handling under forced air cooling (continuous wave) can be up to 8-10kW/m2.
- It uses keel mounting method, without any adhesive.
Product specification and part numbers
Part number | Base size (mm x mm) | Pyramid quantity per unit |
Unit size A x C x B (mm x mm x mm) |
Standard weight kg/m2) |
---|---|---|---|---|
3690-300 | 600 x 600 | 64 | 300 x 60 x 50 | 13 |
3690-500 | 64 | 500 x 60 x 76 | 19 | |
3690-690 | 36 | 690 x 80 x 90 | 20 | |
3690-1000 | 16 | 1000 x 123 x 160 | 26 |
Reflection loss / Shielding performance
Part number | Reflection loss under vertical incidence (-dB @ GHz) | Power handing capacity kW/m2 (at room temperature) | |||||||||
0.08 | 0.3 | 0.5 | 1 | 3 | 6 | 10 | 18 | 40 | 100 | ||
3690-300 | 25 | 35 | 40 | 50 | 50 | 50 | 50 | 45 | 3 | ||
3690-500 | 20 | 30 | 40 | 45 | 50 | 50 | 50 | 50 | 45 | 4 | |
3690-690 | 8 | 25 | 35 | 40 | 50 | 50 | 50 | 50 | 50 | 45 | 5 |
3690-1000 | 11 | 30 | 40 | 45 | 50 | 50 | 50 | 50 | 50 | 45 | 5 |
These values are measured under laboratory conditions. In your situation results may differ, please read our Guarantee |
