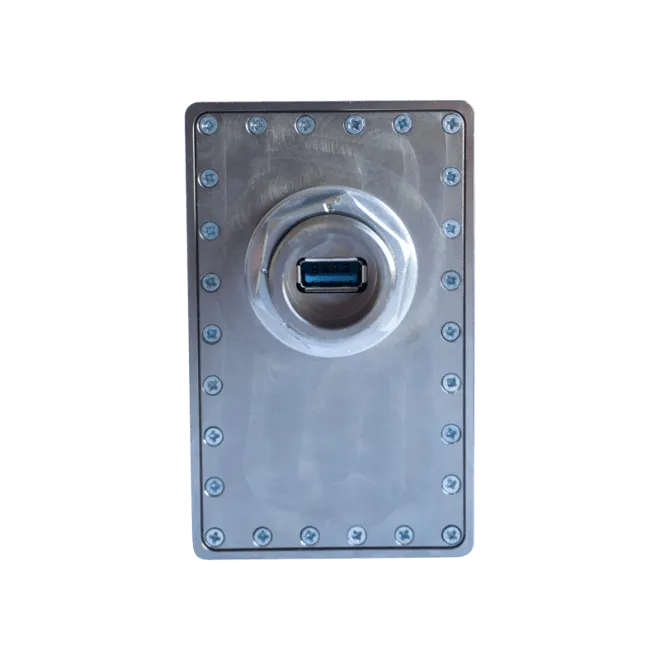

USB 3.1 gen 2 filter type AB


Series

The shielding performance of the filter is greater than 100 dB from 200 MHz through 8 GHz on all signal and power lines while transferring your data. Compatible with USB 2.0, 3.0, 3.1 and Supports SS+ (10 Gbps), SS (5 Gbps), HS (480 Mbps), FS (12 Mbps) and LS (1.5 Mbps). The filter powered by USB power and supports USB v1.2 enhanced battery charging. The unit is compatible with Type A and Type B USB 2.0 cables as well as Type A and Type B USB 3.0/3.1 cables. Two status LEDs indicate power supply health and downstream charging port status.

Specifications
Data Line Balanced Impedance 90 Ω Typ.
USB 2 Data Pair Support SS+ (10 Gbps), SS (5 Gbps)
BC v1.2 Mode Up to 1.5A at 5V (Always Available - Both with and without a Host Connected)
Proprietary mode Up to 2.2A at 5V Available When No Host is Connected (Dedicated Charge Mode)
Power Pair Rejection 200 MHz ~ 8 GHz >100 dB
8 GHz ~ 40 GHz >100 dB
All Pairs Rejection 10 ~ 15 VDC, 2 A
Power In 200 MHz ~ 8 GHz >100 dB
8 GHz ~ 40 GHz >100 dB
LED Indicators Power OK (Red)
Dedicated Charge Mode Available [No Host Detected]
(Yellow)
Connector USB 3.1 Type A Female (Pipe)
USB 3.1 Type B (Non-Pipe)
Power Connector 2.0 or 2.1 x 5.5mm Barrel Jack Connector 12 VDC
Nominal Input, 12 W Max
Dimensions 65.5 x 100.6 x 53.6 mm
USB 3.1 gen 2 filter type AB 78901 technical drawing
