Spring Contact 3.5 mm high, single point

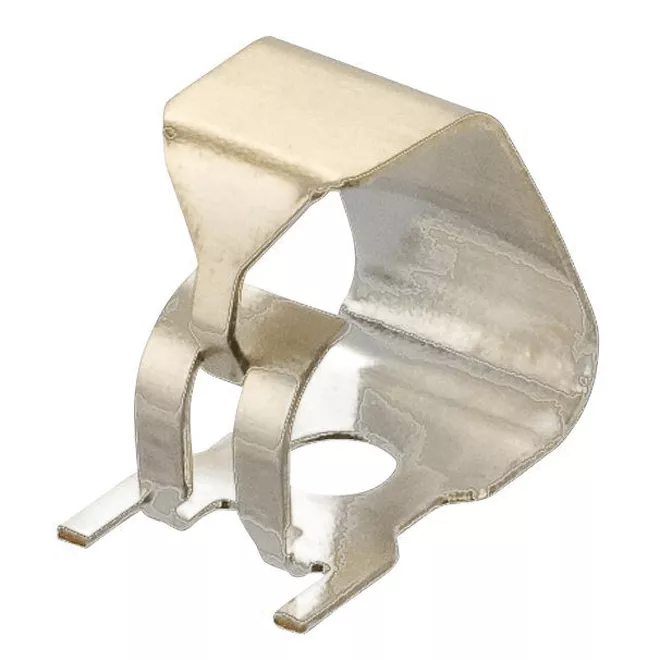

pcb spring contacts 2901 08

Series

Our 2901-08 PCB spring contacts are intended for use in shielding, grounding and general electrical connections applications. Ideal for use on surface mount PCB's. The product is also known as Grounding / EMI / RFI contacts, spring or Shield Finger.


Product specifications
Contact Gender: Male/Plug
Connector Orientation: Vertical
Connection Type: Surface Mount (SMT)
Current Rating (check Specification for full data): 3 A
Operating Temperature: -55 °C to +125 °C
Maximum Soldering Temperature: 260 °C for 10 seconds
Reel quantity 2500 pieces

Dimensional information
Total Number of Contacts: 1
Body Length: 4.05 mm
Height of Connector above PCB: 3.5 mm
Benefits
  • Accommodates both wiping and sliding actions.
  • Packaged in Tape & Reel for automated placement.
  • Protected tip prevents product from hooking.
  • Working height = 3 mm, Minimum = 2.5 mm.

Material information
Finish/Plating on Termination:  100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Titanium Copper
Individual Part Weight: 0.02 g
Technical drawing
spring contact technical drawing
