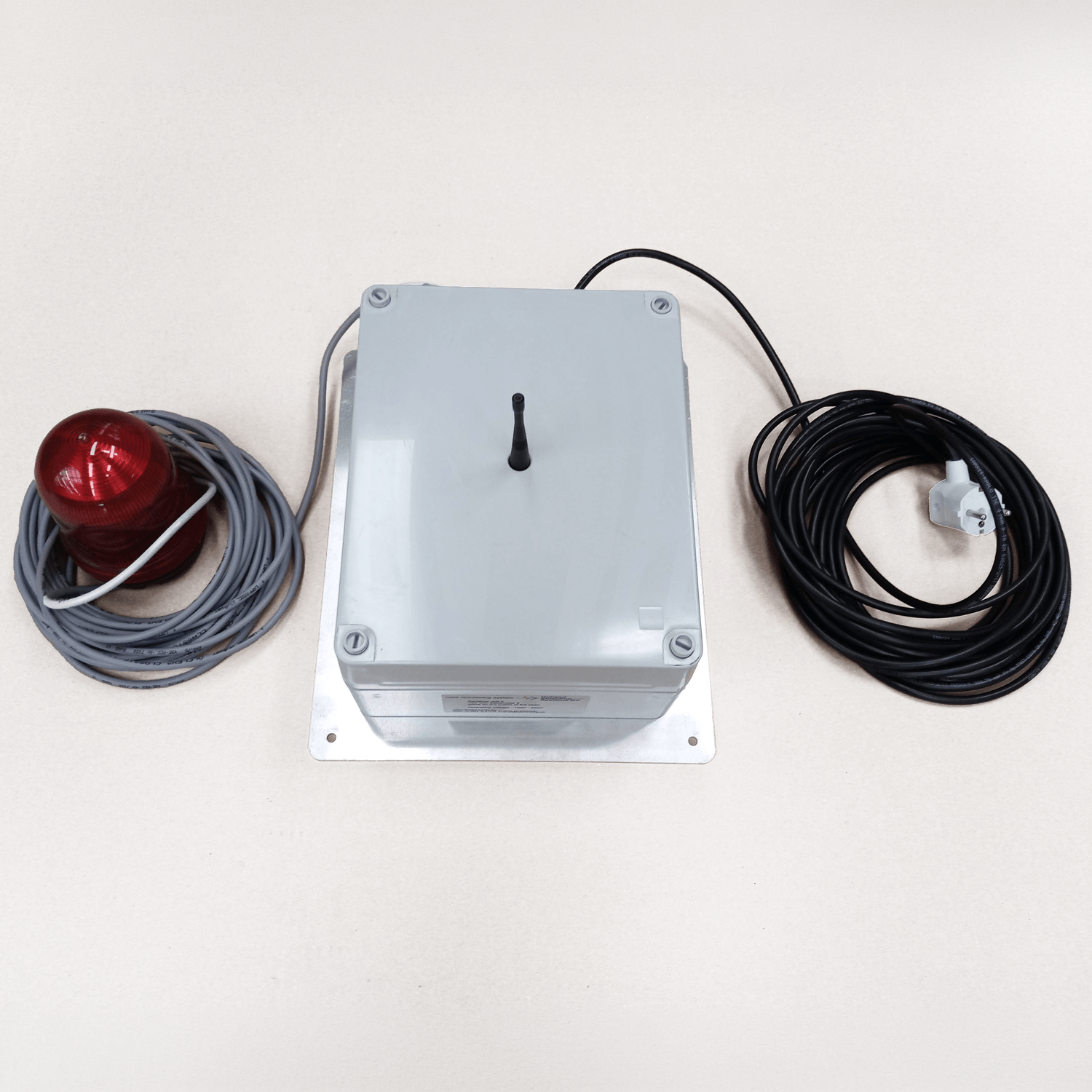

Shielding Effectiveness (SE) Monitoring System

Ensure continuous protection and performance of your Faraday enclosure with our advanced Shielding Effectiveness Monitoring System. Designed for high-security environments, this system provides real-time verification of shielding integrity and immediate alerts in case of performance degradation.

Technical specifications

• Monitoring Frequency Range: 700 MHz – 1.9 GHz
• Check Interval: Every 60 seconds
• Transmission Power: 100 mW ERP
• Detection Threshold: ≥ 100 dB shielding attenuation
• Enclosure Dimensions: Approx. 300 × 300 × 200 mm

Installation Requirements

• Power Supply:
• 230 V / 50 Hz required
• Connections needed both inside and outside the monitored enclosure

Features

• Continuous Monitoring
  Performs a full shielding effectiveness check every minute, ensuring constant system reliability.
• Wide Frequency Range
  Operates across 700 MHz to 1.9 GHz, covering critical communication bands.
• High Sensitivity Detection
  Capable of detecting shielding performance from 100 dB attenuation and below.
• Optimized Signal Distribution
  Transmitter placement is engineered for maximum field homogeneity across the entire Faraday cage surface.
• Internal Transmission Source
  The transmitter is installed inside the shielded environment, ensuring accurate and representative measurements.
• Calibrated Accuracy
  System performance is verified after installation using an Intriple TEMPEST measurement setup, guaranteeing precise and reliable results.
• Alarm & Integration Capabilities
  • Integrated 100 dB(A) siren for immediate local alerts
  • Potential-free contact output for seamless integration with building management systems (BMS)
• Controlled Emission Power
  Operates at 100 mW ERP, ensuring effective testing without interference risks.
