Medium desktop measurement box (400 x 400 x 400 mm)

By default, this box comes with 6 shielded SMA penetrations. Many other shielded conduits are available on request. They may optionally also be added later.


Technical specifications
Data interface See our Filter modules for shielded boxes
Radio frequency interface SMA*6
Numbers of filters 6 pcs
Work size (mm) * 400 (W) * 400 (D) * 400 (H)
Appearance size (mm) * 450 (W) * 530 (D) * 435 (H)
Weight (kg) 30
Working temperature (°C) 0-50
Isolation (≥70 dB @ 2.4 GHz) & (≥65 dB @ 5.8 GHz)
Appearance color Beige
* Notice: dimensions are indicative

Attenuation

The RF shielded box is the most economical solution for blocking for example GSM, WiFi, Bluetooth and other wireless communication standards. The average attenuation over a wide frequency range is 80 dB. See attenuation table below.

Frequency (Mhz) Attenuation (dB)
2400 72
5800 68
These values are measured under laboratory conditions.
In your situation results may differ, please read our Guarantee.
Features
  • Wireless communication test system
  • For Bluetooth, WiFi, 3G, wireless test, RFID
  • High levels of shielding attenuation, greater than 65 dB
  • Easy & Flexible operation in Lab and production line
  • R&D, custom design
  • Box can be equipped with shielded power filters for power connection in the box while still blocking all wireless signals.

Technical drawing

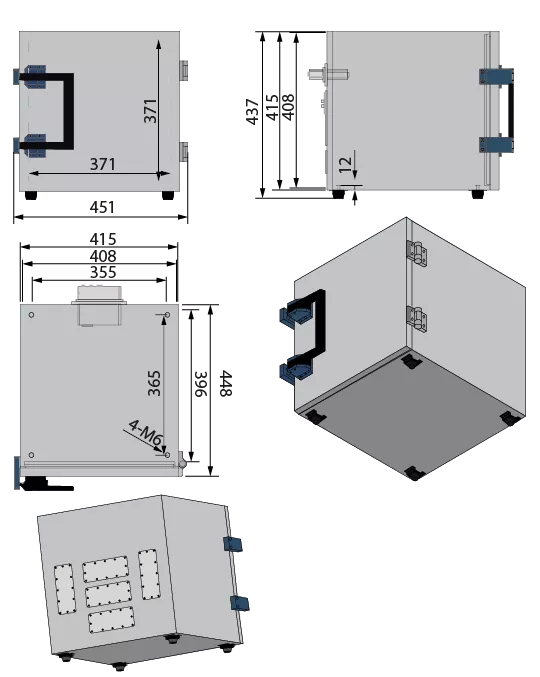

Medium desktop measurement box technical drawing
Shielding performance
Medium desktop measurement box Shielding performance attenuation
