High performance EMI/RFI shielded box

high performance emi rfi shielded box icon 1

Series

Specify the width of the available space on the inside of the box.
Specify the length of the available space on the inside of the box.
Specify the height of the available space on the inside of the box.

This EMI/RFI-shielded box has up to 120 dB reduction of RF signals up to 5 GHz. This makes the shielded box ideal for testing cellular handsets, RFID, Bluetooth, Zigbee, WiMax, WLAN or similar wireless devices. The box can be constructed in any size required.

Thanks to its mobility, the box is well suited for forensics in cases where the current state of an electronic device needs to be frozen by blocking all wireless contact with the outside world.

By default this box comes with 10 shielded SMA penetrations. Many other shielded conduits are available on request, or they may optionally be added later to the filter plate at the rear of the box.

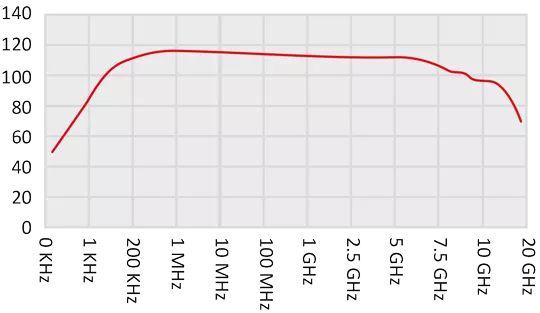

Shielding performance (dB)
high performance shielded box graph

Applications
  • Digital forensics
  • Wireless testing
  • R&D
  • EMC Testing

Options (on request)

The box can be equipped with shielded power filters for a power connection to the box while all wireless signals remain blocked. In addition the box can be equipped with any or all of the following options:

  • Shielded ventilation panels for heat transfer
  • Shielded window to maintain visual contact with the devices inside
  • Coaxial feed-through / signal filters
  • Ethernet connection
Examples of customer boxes
Custom made high performance shielded box according to customer drawing

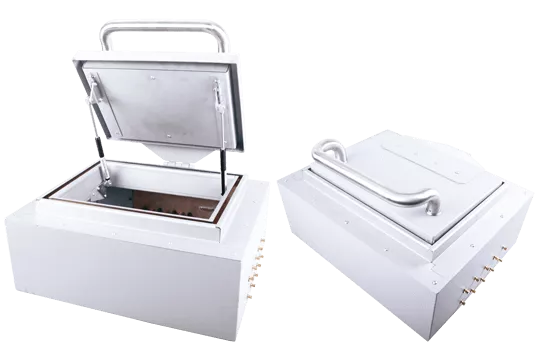

Example 1
Shielded box (small) 575 x 465 x 300 mm (outer dimension)
With connector mounting plate, door handle and Hydraulic Arm for easy opening. Weight 40 kg

* Notice: dimensions are indicative. Custom sizes and finishing are possible

Custom made high performance shielded box according to customer drawing

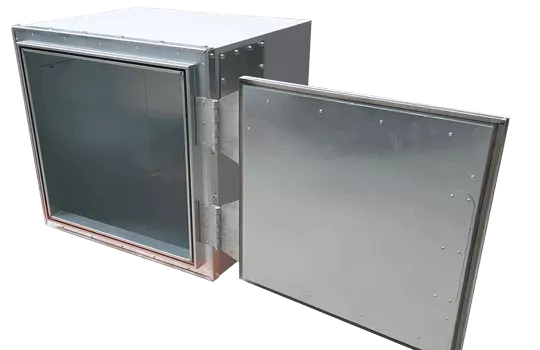

Example 2
Shielded box (medium) 800 x 800 x 800 mm (outer dimension)
With connector mounting plate, door handle, ventilation pannel
Other sizes on request

* Notice: dimensions are indicative. Custom sizes and finishing are possible

Custom made high performance shielded box according to customer drawing

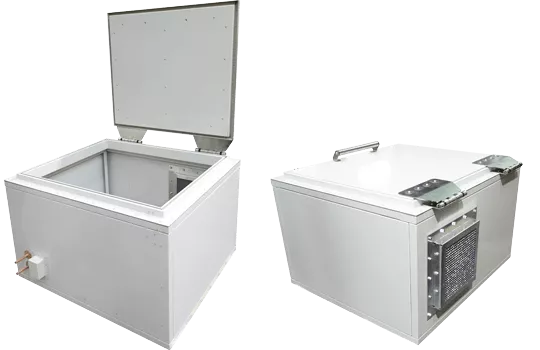

Example 3
High performance shielded box (large)
Size: 1200 x 1200 x 900 mm (outer dimension)
Painted in RAL 7035, honeycomb ventilation pannel, waveguide, door handle
Other sizes on request

* Notice: dimensions are indicative. Custom sizes and finishing are possible
