EMC Dust filter ventilation panel

emc dust filter ventilation panels icon 1

Series

Specify the width in mm.
Specify the length in mm.
Allowed maximum size is 64 MiB. You can upload multiple files

EMC dust filter ventilation panels consist of several layers of Aluminium foil mesh encased in a rigid Aluminium frame, pre-drilled, or with fasteners made to the customer's specifications, or with flow-drilled thread holes.

Approximately 95% of the 9510 series EMC Dust filter ventilation panels are made to customer specifications complying with an order. These panels can be treated with a variety of finishes to provide corrosion protection. Air filter oil can be applied to the Aluminium filter to assist in dirt and dust retention.

By default, frames can be provided with an additional 6800 series Amucor or 7000 series Standard shield EMI gasket.

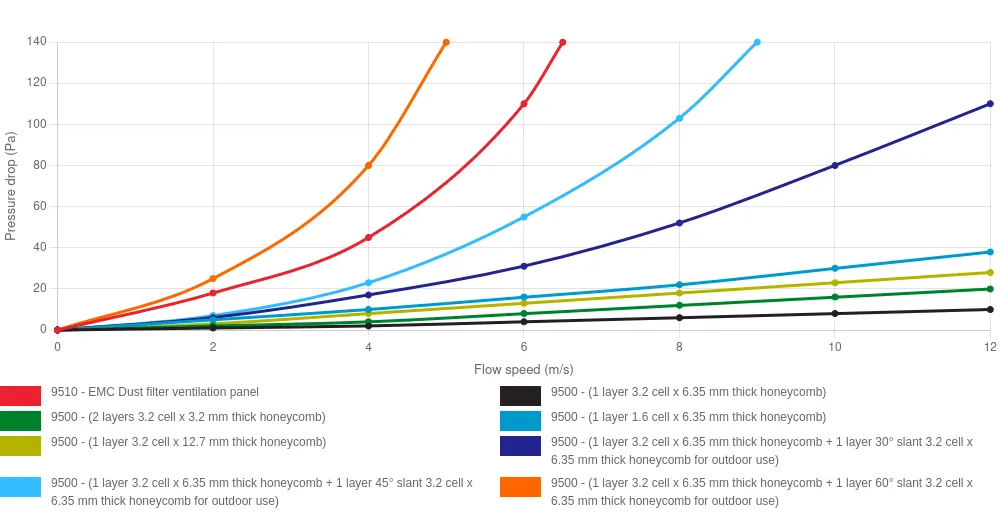

9510 series - Air flow pressure drop graph

Applications
  • Electronics enclosures
  • Air conditioning units
  • Fan housings
  • EMC racks
Advantages
  • Light weight
  • High shielding performance
  • Very low air-flow resistance
  • Reduction of turbulence
Frame options

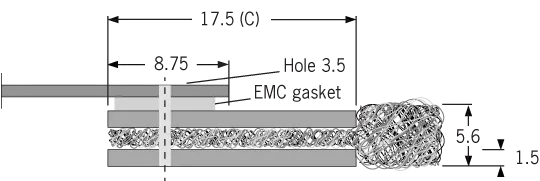

EMC Dust filter ventilation panel frame types

Frame A

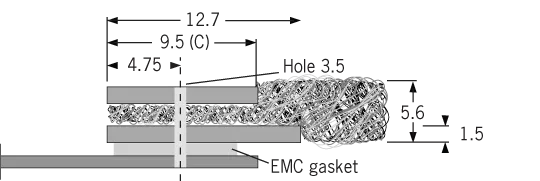

EMC Dust filter ventilation panel frame types

Frame B

Standard dimensions

Our EMC dust filter ventilation panels are usually custom made for each client. However, some common dimensions are in stock. In the table of standard dimensions below some common types of EMC dust filter ventilation panels are specified to illustrate the required information. Hole diameter P is 3.5 mm by default, with other dimensions possible on request. Also available with screw apertures or inserts.

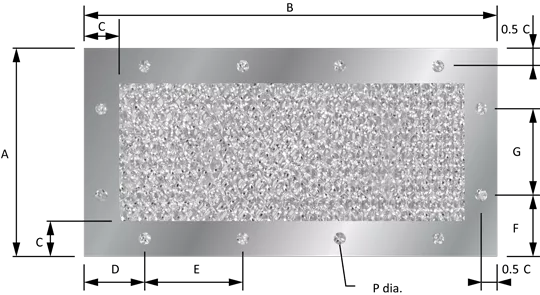

EMC Dust filter ventilation panel technical drawing



Outer dimensions Mounting holes horizontal Mounting holes vertical
A B no D E no F G
75 150 2 40 70 1 37.5 -
100 100 1 50 - 1 50 -
100 200 3 20 80 1 50 -
125 125 2 20 85 1 62.5 -
125 250 3 30 95 1 62.5 1
150 150 2 25 100 2 25 100
150 300 4 30 80 2 25 100
175 175 2 40 95 2 40 95
175 350 4 40 90 2 40 95
200 200 3 20 80 3 20 80
200 400 5 30 85 3 20 80
250 250 3 30 95 3 30 95
300 300 4 30 80 4 30 80
300 600 7 30 90 4 30 80
