Big mobile measurement box

big mobile measurement box icon 1

Series

Big mobile meaurement box (698 x 686 x 696 mm)
  • Radio frequency interface: N-SMA*2
  • Application: for Bluetooth, WiFi, 3G, wireless test, RFID
  • Frequency: 0~6000 MHz
  • Working size (mm): 698(W)*686(D)*696(H)

Technical specifications
Shielding effect [email protected]/5.8GHz
Interface type See our filter modules
Numbers of filters 5 pcs
Working temperature (°C) (0-50)
Working dimensions (mm) 698(W)*686(D)*696(H)
Outer dimensions (mm) 878(W)*838(D)*907(H)
Weight (kg) 90 kg
* Notice: dimensions are indicative
Features
  • High levels of shielding attenuation, greater than 60 dB
  • Box can be equipped with shielded power filters
  • Connection in the box while still blocking all wireless signals
  • Easy & Flexible operation in Lab and production line
  • R&D, custom design

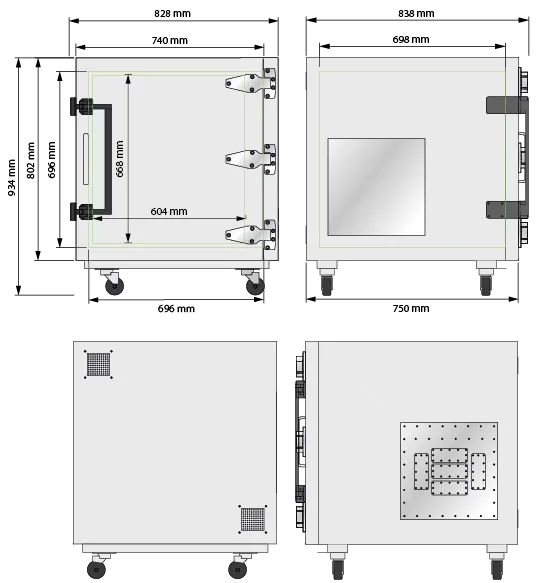

Technical drawing
big mobile measurement box technical drawing dimensional

Notice: dimensions are indicative
